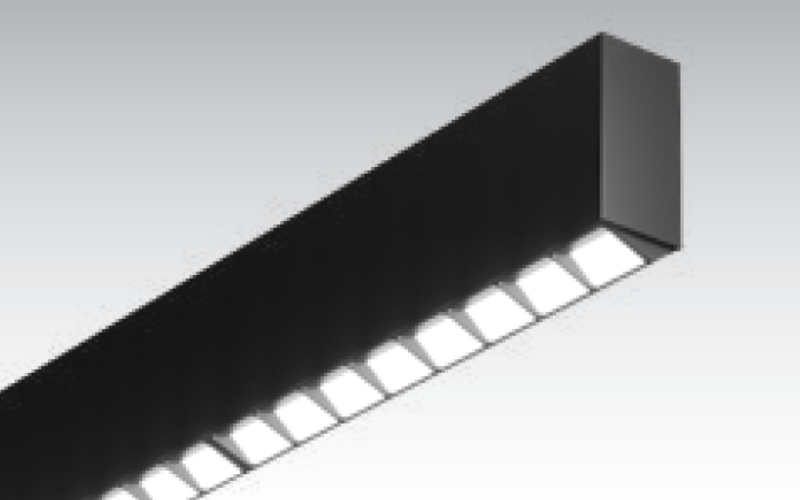

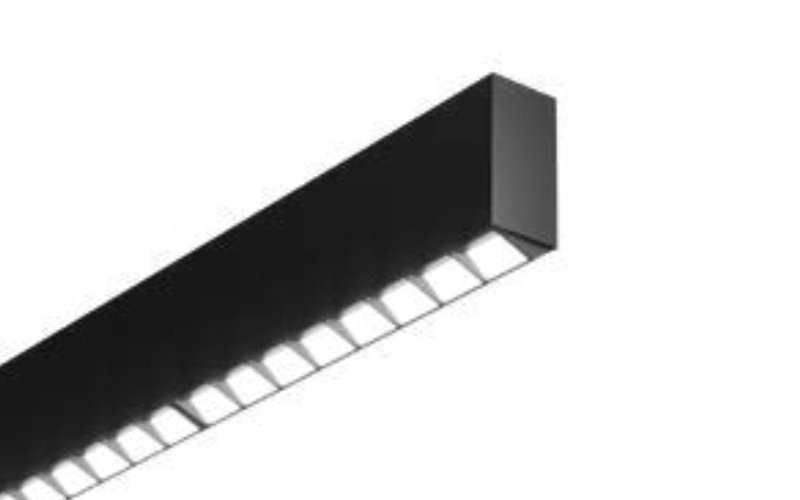

SCSML. Sculpt MikroLite SURFACE - WALL WASH ONLY.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Mikrolite
8 cell, 2 cell, 1 cell
Output
Up to 1000 lm/ft
Efficacy
Up to 115 lm/W
Lengths
2ft - 12ft standalone & System Runs
Optics
Soft Beam - Reflector
Sharp Beam - TIR
8 cell, 2 cell, 1 cell
Output
Up to 1000 lm/ft
Efficacy
Up to 115 lm/W
Lengths
2ft - 12ft standalone & System Runs
Optics
Soft Beam - Reflector
Sharp Beam - TIR
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/4"L: Run length (Ft)H: 3 7/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)10.1 W/Ft
- Lumens(Approx)200 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSCSMLWW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
