Axis Lighting

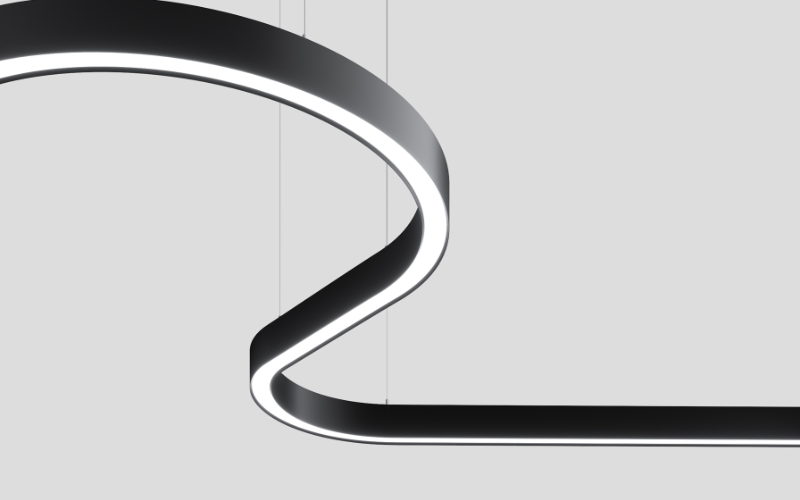

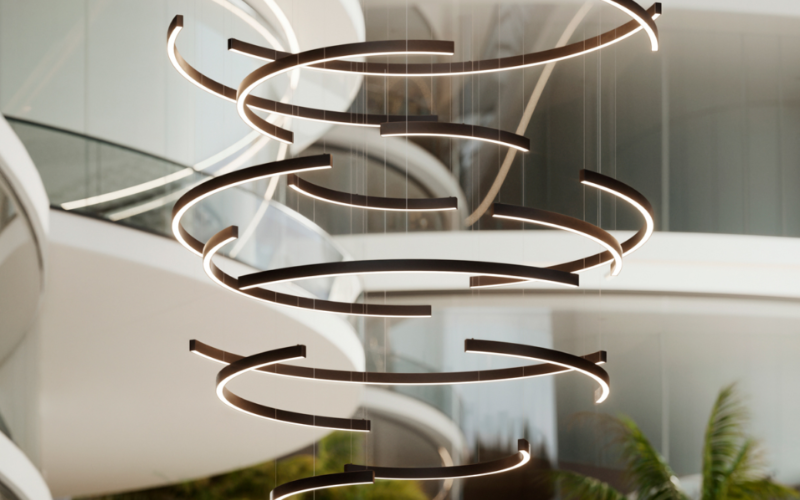

SK2PD. Sketch 2 PENDANT.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct, Direct/Indirect
Output Direct Up to 1100 lm/ft
Indirect Up to 1200 lm/ft
Efficacy Up to 133 lm/W
Segments 2ft minimum
Any curve radius over 12"
Output Direct Up to 1100 lm/ft
Indirect Up to 1200 lm/ft
Efficacy Up to 133 lm/W
Segments 2ft minimum
Any curve radius over 12"
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/8”L: Run length (inch)H: 3 1/2”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)18.65 W/Ftcustom
- Lumens(Approx)300 Lm/Ft1200 Lm/Ft1100 Lm/Ftcustom
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron EcoSystem HDMX
- Controls/NetworkEthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralRemotePoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSK2PD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
