Axis Lighting

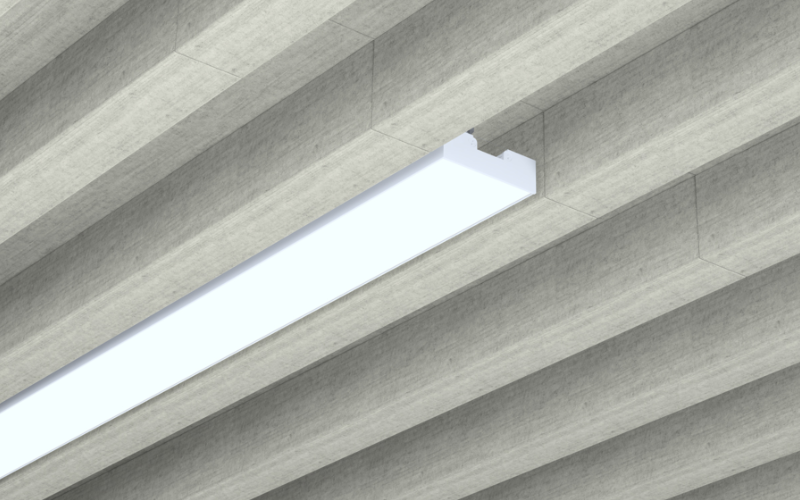

SL3. Slate 3 WOOD CEILINGS.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Output Up to 800 lm/ft
Efficacy Up to 129 lm/w
Efficacy Up to 129 lm/w
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/4"L: Run length (Ft)H: 1"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)3.475 W/Ft4.675 W/Ft6.3 W/Ftcustom
- Lumens(Approx)450 Lm/Ft600 Lm/Ft800 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron EcoSystemDMX
- Controls/NetworkEthernetWireless Dimming
- Power/VoltageIntegralRemotePoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedWood
- HousingFixture
- Housing Depth1 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSL3-WDC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
