Axis Lighting
STLDI. STENCIL PENDANT - LINEAR DIRECT / INDIRECT.
 Configure
 Add to project

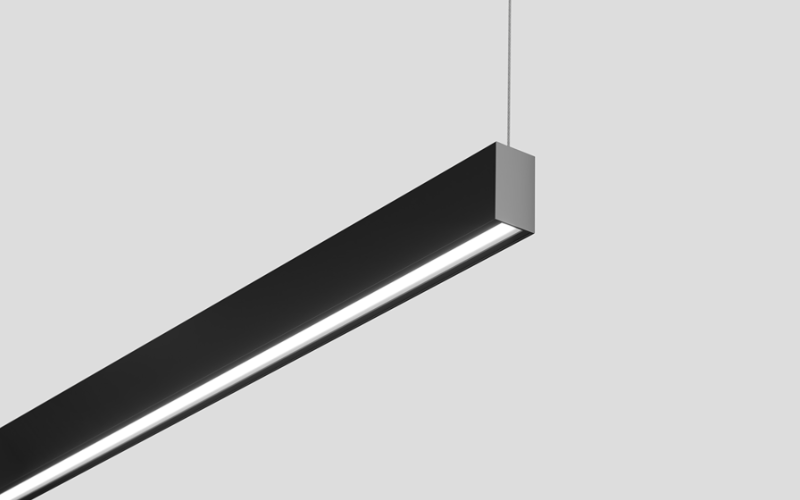

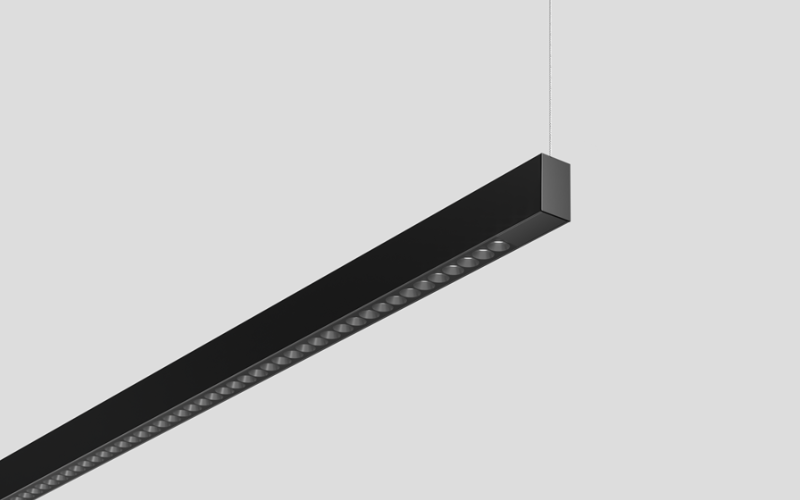

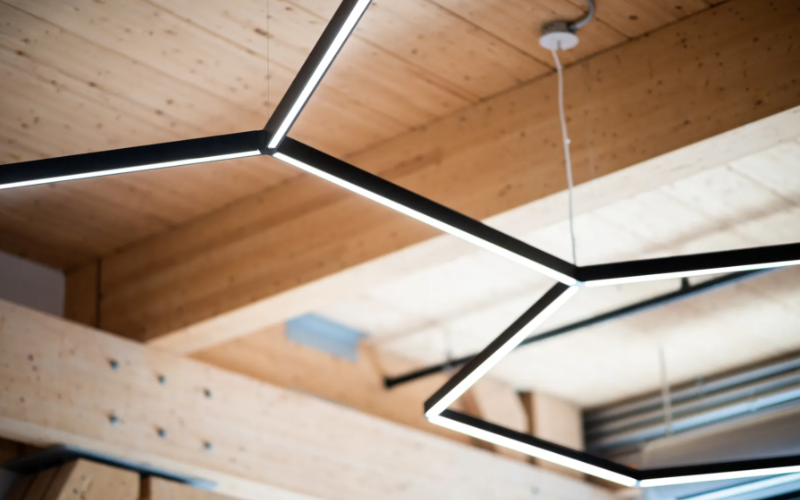

Axis Lighting. STLDI. STENCIL PENDANT - LINEAR DIRECT / INDIRECT.
Axis Lighting. STLDI. STENCIL PENDANT - LINEAR DIRECT / INDIRECT.
Axis Lighting. STLDI. STENCIL PENDANT - LINEAR DIRECT / INDIRECT.
Axis Lighting. STLDI. STENCIL PENDANT - LINEAR DIRECT / INDIRECT.
RESOURCES
DESCRIPTION
Light Distribution             Direct, Indirect, Direct/Indirect

Output Direct                   Up to 600 lm/ft

Output Indirect                Up to 1000 lm/ft

Efficacy                             Up to 100 lm/W

Segments                         2 - 8 ft lengths (1’ increments) & System Run
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 3/16"
    L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 FtRun length (Ft)
    H: 2"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
  • Lumens(Approx)
    175 Lm/Ft200 Lm/Ft250 Lm/Ft300 Lm/Ft350 Lm/Ft500 Lm/Ft400 Lm/Ft700 Lm/Ft1000 Lm/Ft
  • Optics
    Direct/IndirectAsymmetric Indirect/General Direct
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
  • Controls/Network
    Ethernet
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
