Axis Lighting

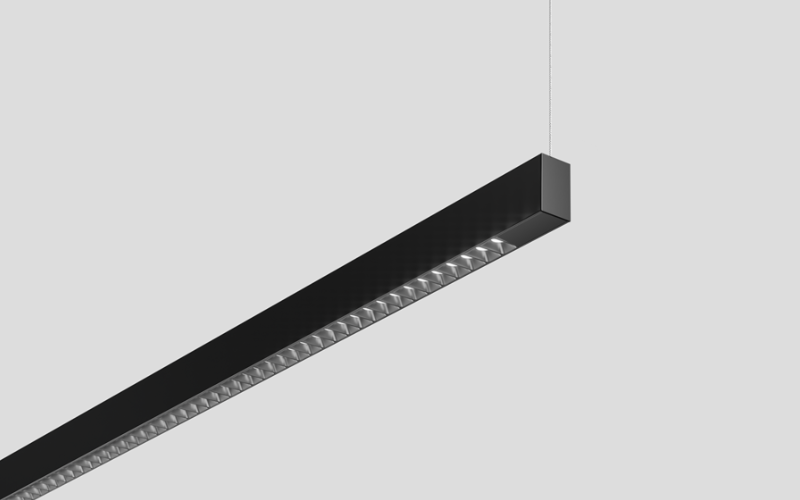

STSL. Stencil Surface - Linear with MikroLite Only.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
MikroLite Modules 12 cells
Output Up to 1000 lm/module
Efficacy Up to 110 lm/W
Optics Soft Beam - Reflector | Sharp Beam - TIR
Lengths 2ft - 8ft standalone & System Runs
Light Distribution Direct
Output Up to 1000 lm/module
Efficacy Up to 110 lm/W
Optics Soft Beam - Reflector | Sharp Beam - TIR
Lengths 2ft - 8ft standalone & System Runs
Light Distribution Direct
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 5/16"L: 2 Ft3 Ft4 Ft5 Ft6 Ft8 FtRun length (Ft)H: 2 1/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)9 W/Ftcustom
- Lumens(Approx)200 Lm/Ft300 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectMediumWide Flood
- Adjustable
- DimmingDim to 1%0-10V
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSTSL-MLO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
