Axis Lighting

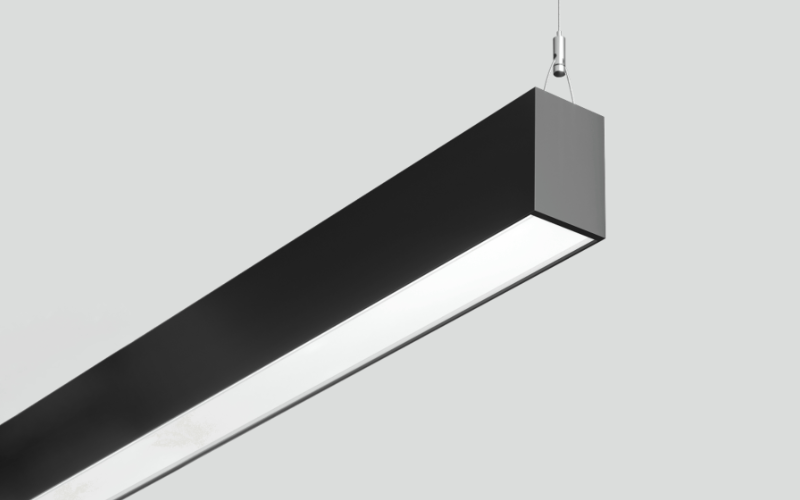

TB2DILED. Beam 2 Pendant mount - Direct / Indirect.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct, Indirect, Direct/Indirect
Output Direct Up to 1000 lm/ft
Output Indirect Up to 1100 lm/ft
Efficacy Up to 149 lm/W
Lengths 2' - 12' Standalone & System Runs
Output Direct Up to 1000 lm/ft
Output Indirect Up to 1100 lm/ft
Efficacy Up to 149 lm/W
Lengths 2' - 12' Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/2"L: 2 Ft3 Ft4 Ft5 Ft8 Ft12 FtRun length (Ft)H: 3 7/8"4 1/8"4 7/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)7.35 W/Ft9.9 W/Ft11.2 W/Ft10.7 W/Ft19 W/Ft16.9 W/Ft19.3 W/Ft20.6 W/Ft18.9 W/Ftcustom
- Lumens(Approx)300 Lm/Ft400 Lm/Ft750 Lm/Ft1000 Lm/Ft1100 Lm/Ft2100 Lm/Ftcustom
- OpticsDirect/IndirectGrazingNarrowGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULNYC
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTB2DILED
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
