Axis Lighting

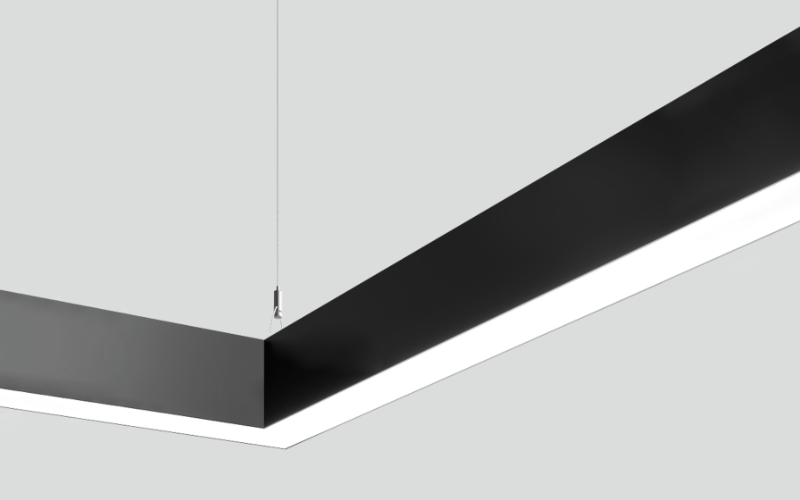

TB2DILEDPAT. Beam 2 LED PENDANT MOUNT - DIRECT / INDIRECT REGULAR LIT CORNER PATTERNS.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Mounting Pendant, Surface, Wall
Light Distribution Direct, Indirect, Direct/Indirect
Output Direct Up to 1000 lm/ft
Output Indirect Up to 1100 lm/ft
Lengths According to total length specified
Light Distribution Direct, Indirect, Direct/Indirect
Output Direct Up to 1000 lm/ft
Output Indirect Up to 1100 lm/ft
Lengths According to total length specified
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/2"L: Run length (inch)H: 3 7/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)custom
- Lumens(Approx)300 Lm/Ft400 Lm/Ft750 Lm/Ft1000 Lm/Ft1100 Lm/Ftcustom
- OpticsDirect/IndirectGrazingNarrowGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- Certificates
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTB2DILEDPAT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
