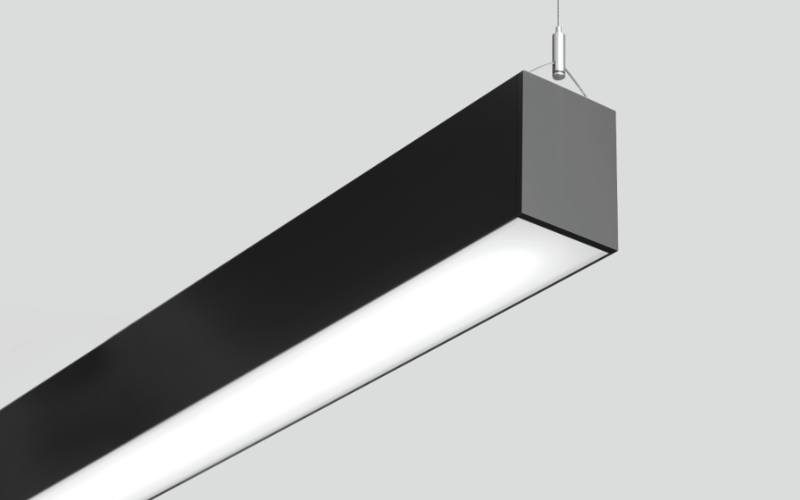

TB3DLED. Beam 3 Pendant mount - Direct.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct, Indirect, Direct/Indirect
Output Direct Up to 1100 lm/ft
Output Indirect Up to 1200 lm/ft
Efficacy Up to 149 lm/W
Lengths 2' - 12' Standalone & System Runs
Output Direct Up to 1100 lm/ft
Output Indirect Up to 1200 lm/ft
Efficacy Up to 149 lm/W
Lengths 2' - 12' Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 13/32"L: 4 Ft5 Ft6 Ft8 Ft12 FtRun length (Ft)H: 4 1/2"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)9.4 W/Ft8.8 W/Ftcustom
- Lumens(Approx)400 Lm/Ft500 Lm/Ft1000 Lm/Ft1100 Lm/Ftcustom
- OpticsDirect/IndirectNarrowGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CUL
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
