Axis Lighting

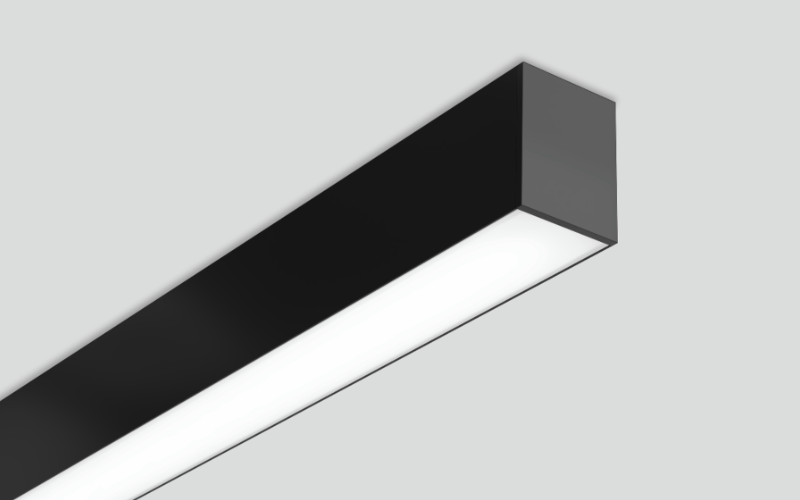

TB3SLED. Beam 3 Surface mount.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct
Output Up to 1100 lm/ft
Efficacy Up to 131 lm/W
Lengths 2' - 12' Standalone & System Runs
Output Up to 1100 lm/ft
Efficacy Up to 131 lm/W
Lengths 2' - 12' Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 13/32"L: 4 Ft5 Ft6 Ft8 Ft12 FtRun length (Ft)H: 4 1/2"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)9.3 W/Ft8.8 W/Ftcustom
- Lumens(Approx)400 Lm/Ft500 Lm/Ft1000 Lm/Ft1100 Lm/Ftcustom
- OpticsDirectNarrowGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CUL
- Environment
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTB3SLED_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
