Axis Lighting

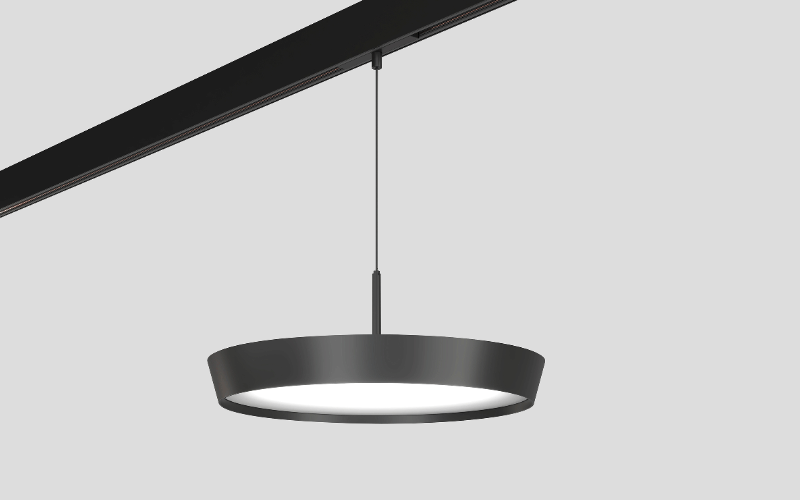

TDHDP. Helios Disk Pendant.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Helios Disk provides affordable ambient lighting in a fresh and sophisticated form factor.
Featuring a rounded profile reminiscent of the sun, Helios Disk is a decorative pendant that packs a punch. With its outstanding performance and smooth optics, this troffer alternative delivers a uniform, diffuse glow that can illuminate large areas. The tapered rim adds elegance to the shallow disk housing.
Featuring a rounded profile reminiscent of the sun, Helios Disk is a decorative pendant that packs a punch. With its outstanding performance and smooth optics, this troffer alternative delivers a uniform, diffuse glow that can illuminate large areas. The tapered rim adds elegance to the shallow disk housing.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 19"L: 19"H: 2 3/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)21.72 W
- Lumens(Approx)1710 Lm2690 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegral
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- Environment
- Mounting TypePendantTrack/BuswaySystem
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTDHDP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
