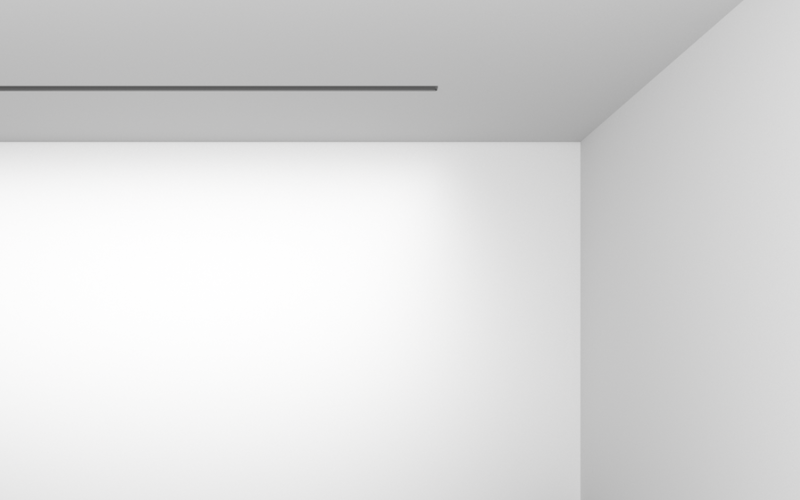

WWR. Wall Wash Perfekt RECESSED.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct Asymmetric
Output Up to 1000 lm/ft
Efficacy Up to 84 lm/W
Segments 2’, 3’, 4’, 5’, 6’, 8’, 12’ & System Run
Output Up to 1000 lm/ft
Efficacy Up to 84 lm/W
Segments 2’, 3’, 4’, 5’, 6’, 8’, 12’ & System Run
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/4"L: 2 Ft3 Ft4 Ft5 Ft6 Ft8 Ft12 FtRun length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)4.5 W/Ft4.9 W/Ft6 W/Ft9.1 W/Ft11.4 W/Ftcustom
- Lumens(Approx)375 Lm/Ft400 Lm/Ft500 Lm/Ft750 Lm/Ft900 Lm/Ftcustom
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULNYC
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWWR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
