Axis Lighting

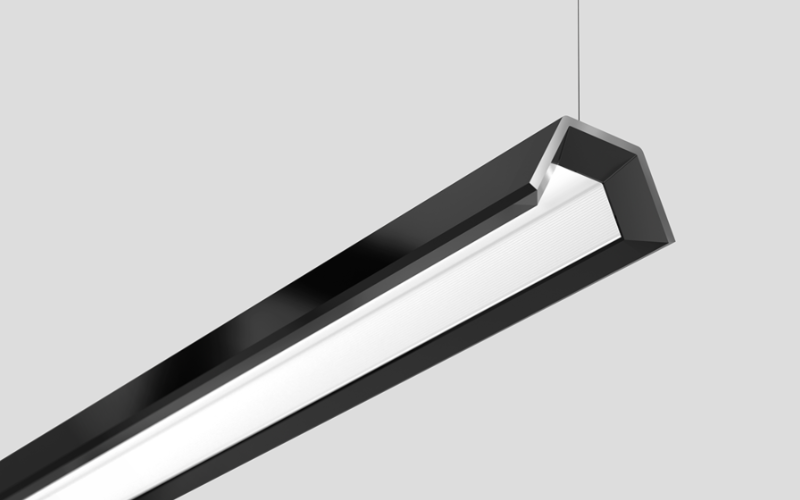

ZELED. Zen PENDANT DIRECT-INDIRECT.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct, Direct/Indirect
Output Direct Up to 900 lm/ft
Output Direct/Indirect Up to 1400 lm/ft
Efficacy Up to 135 lm/W
Segments 2’, 3’, 4’, 5’, 6’, 7’, 8’, 12’ lengths & System Run
Output Direct Up to 900 lm/ft
Output Direct/Indirect Up to 1400 lm/ft
Efficacy Up to 135 lm/W
Segments 2’, 3’, 4’, 5’, 6’, 7’, 8’, 12’ lengths & System Run
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 15/32"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft12 FtH: 2 13/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)
- Lumens(Approx)500 Lm/Ft1200 Lm/Ft1500 Lm/Ftcustom
- OpticsDirect/IndirectSemi-IndirectBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
