Axis Lighting

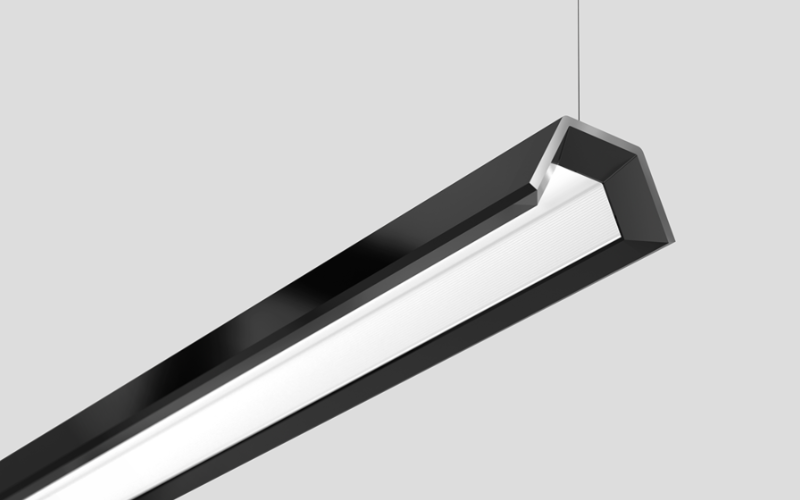

ZELED. Zen LINEAR DOWNLIGHT - PENDANT DIRECT.
 Configure
 Add to project
Axis Lighting. ZELED. Zen LINEAR DOWNLIGHT - PENDANT DIRECT.
Axis Lighting. ZELED. Zen LINEAR DOWNLIGHT - PENDANT DIRECT.
Axis Lighting. ZELED. Zen LINEAR DOWNLIGHT - PENDANT DIRECT.
RESOURCES
DESCRIPTION
Light Distribution                Direct, Direct/Indirect

Output Direct                      Up to 900 lm/ft

Output Direct/Indirect      Up to 1400 lm/ft

Efficacy                                 Up to 135 lm/W

Segments                            2’, 3’, 4’, 5’, 6’, 7’, 8’, 12’ lengths & System Run
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 5 15/32"
    L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft12 FtRun length (inch)
    H: 2 13/16"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    10.1 W/Ftcustom
  • Lumens(Approx)
    300 Lm/Ft700 Lm/Ft900 Lm/Ftcustom
  • Optics
    DirectWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VDALI
  • Controls/Network
    Ethernet
  • Power/Voltage
    IntegralPoEUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
