Axis Lighting

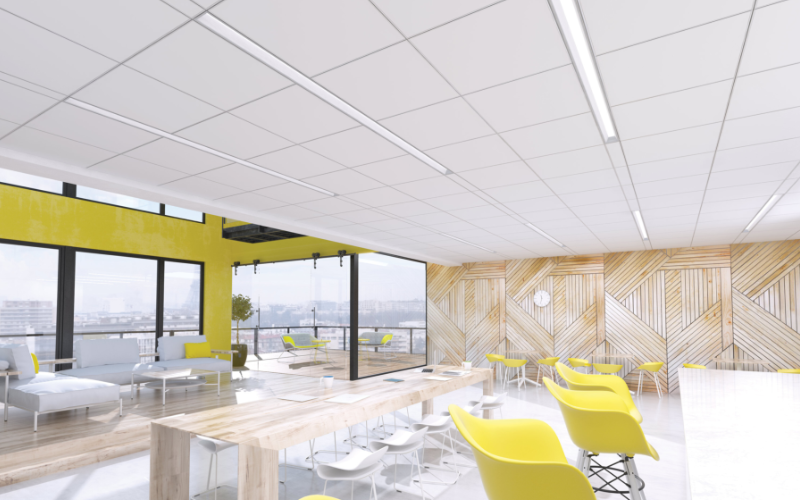

ZERLED. Zen LINEAR - RECESSED.
SPECIFICATIONS

CONFIGURATOR

Dimensions
W: 3 7/16"
L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft12 FtRun length (Ft)
Light Source
LED
CCT/Color
2700K3000K3500K4000K
CRI
80 90
Watt^(Approx)
9.2 W/Ftcustom
Lumens^(Approx)
400 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
Optics
DirectGeneral Diffused
Adjustable
Dimming
Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
Controls/Network
Ethernet
Power/Voltage
IntegralPoEUNV 120-277V120V277V347V
Integral Emergency
EM Integral
Lumen Maintenance
50000 h
Certificates
UL/CUL
Environment
Damp
Mounting Type
Ceiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
Housing
New ConstructionChicago Plenum
Housing Depth
5 ''

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

CONFIGURATOR

Marks unavailable product configuration, refer to manufacturer’s documentation for details

BUILD CATALOG NUMBER

PRODUCT DESCRIPTION
—

Zen’s patented inverted "U" form provides soft, comfortable LED lighting. It emits more downward luminance from the top than from the sides. The pendant version uses SurroundLite optics to open up the space by delivering ample, glare-free downlighting and reflected light throughout. Luminaire also available in a Zen Square version.
