Barbican Lighting
20-02. Jut Box.
Configure
Add to project
RESOURCES
DESCRIPTION

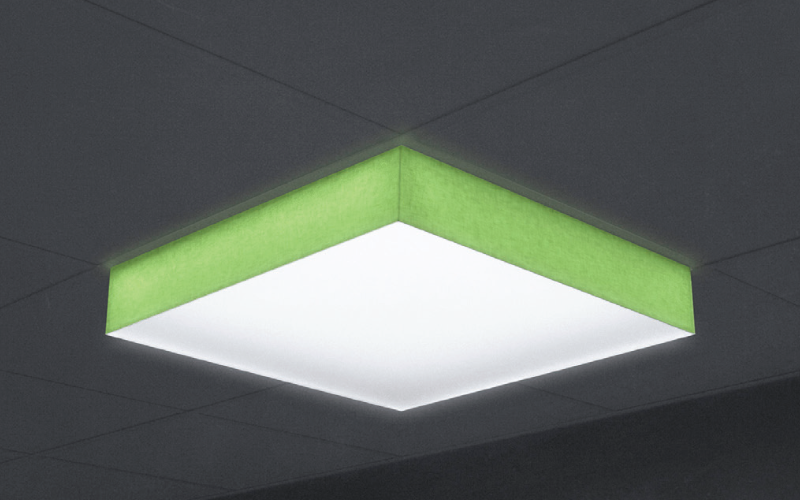

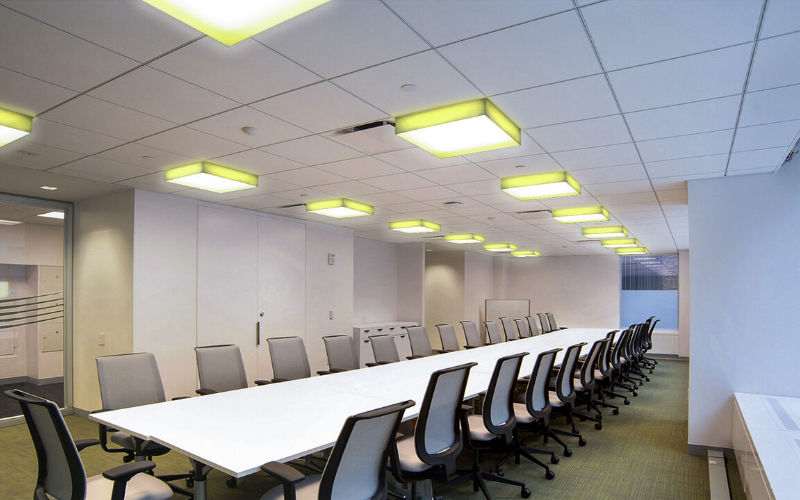

The Jut Box utilizes the full range of Barbican finishes in it’s construction giving the design team a massive compliment of materials and colors to utilize. Pick from a variety of standard drop depths to create a unique ceiling that enhances an area while staying in budget. Good efficiency is a feature of the Jut Box as well with all dimming and LED color options available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 24"L: 24"48"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable WhiteRGBW
- CRI90
- Watt(Approx)13 W25 W42 W50 Wcustom
- Lumens(Approx)1300 Lm2640 Lm4400 Lm5280 Lmcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron EcoSystemLutron T-Series (PSQ0)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywall
- HousingNew Construction
- Housing Depth4 ''5.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time20-02
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
