Barbican Lighting
22-S. HPC3 STRAIGHT.
 Configure
 Add to project
DESCRIPTION

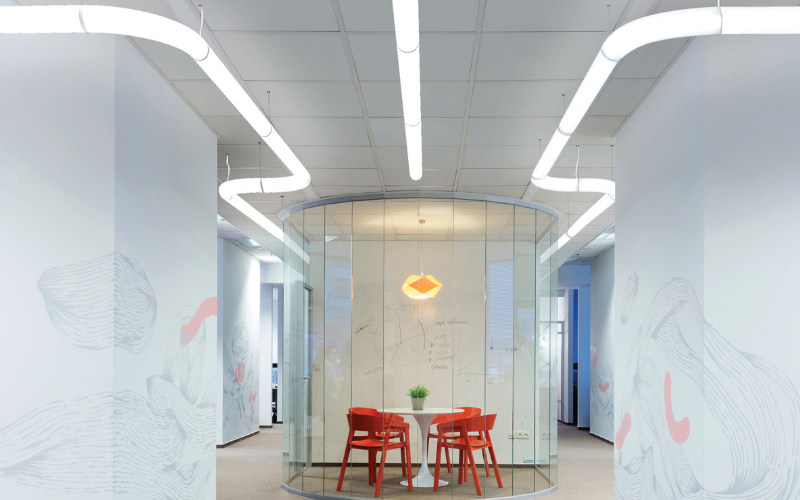

The HPC³™ is a modular system that offers flexibility with mounting options, creating endless variations that will suit any environment. Each component offers seamless construction, is fully enclosed and washable. Unlike typical cylindrical fixtures which use standard opal acrylics, HPC³™ is lit from end to end using a 6-sided internal board and heat sink system. This assures full and consistent performance throughout the entire fixture, producing an even, ethereal glow. Built from a specially synthesized material that yields 85% light transmission while offering excellent LED hiding properties, this system of fixtures can provide all of the light required in a space without using supplemental downlights.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4”6”8”10”
    L: 24”36”48”60”72”84”96”108”120”Run length (Ft)
    H: 4”6”8”10”
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KTunable WhiteRGBW
  • CRI
    90
  • Watt(Approx)
    8 W/Ft12 W/Ftcustom
  • Lumens(Approx)
    800 Lm/Ft1200 Lm/Ftcustom
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%0-10VLutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO DMX
  • Controls/Network
    Ethernet
  • Power/Voltage
    IntegralRemotePoEUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    ETL
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
