Big Beam Emergency Systems

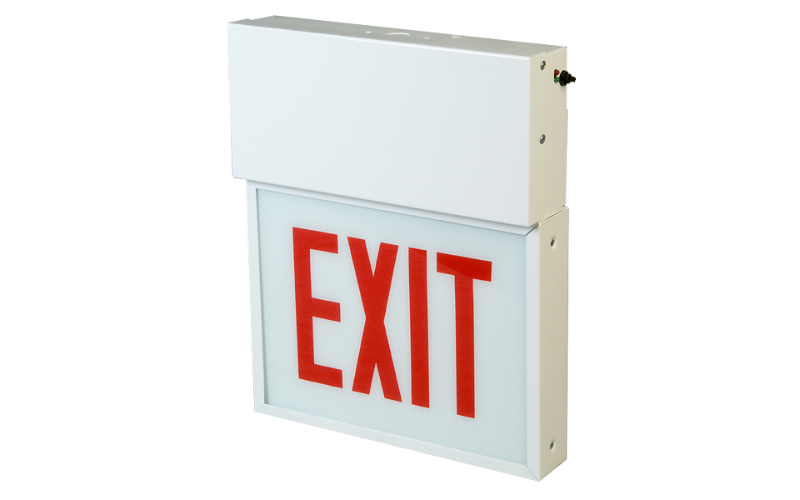

ECXL/ERCXL. Chicago Approved LED High Capacity Exit Sign.
Configure
Add to project
RESOURCES
DESCRIPTION
The ECXL series is a classic, Chicago Approved steel Exit meant for high capacity and remote capability.
- High Capacity, Chicago Approved Exit Sign
- Dual Voltage 120/277 VAC
- Open-Face Glass Panel
- Silk Screen Letters
- Ceiling, End, or Back Mount
- Canopy & Recessed available
- 20-Gauge Steel Housing
- White Powder-Coat Finish
- White LED 3.7 Watts
- Sealed Lead Calcium Battery
- 6V Operation
- Test Switch with Red Power on Indicator
- UL Listed
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.8"6.65"L: 12.3"16.8"H: 5.8"16"
- Light SourceLED
- CCT/Color
- CRI
- Watt(Approx)3.7 W
- Lumens(Approx)
- OpticsDirectDirect View
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CULMade in USAChicago Approved
- Environment
- Mounting TypeCeiling SurfaceCeiling RecessedWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeECXL-ERCXL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
