Big Beam Emergency Systems
GA. Large Industrial Emergency Light.
Configure
Add to project
RESOURCES
DESCRIPTION
The ET series sets the standard for Chicago Approved Emergency Lighting. Made in USA.

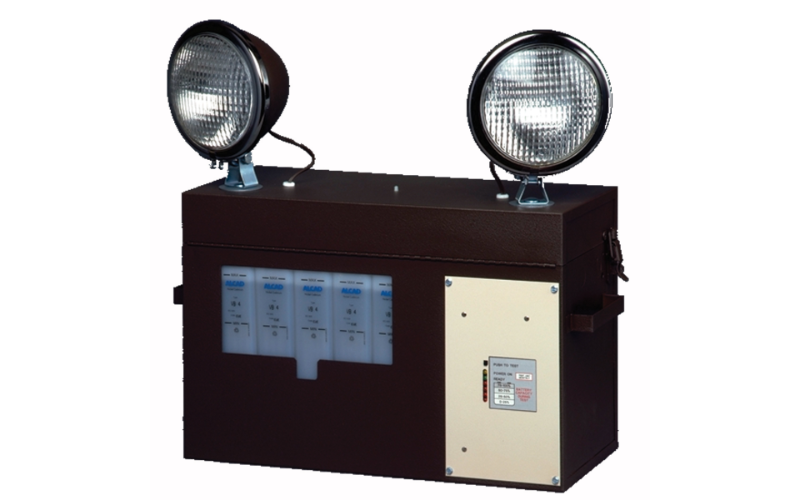

- Large Industrial Emergency Light
- Integrated Solid State System and Switching
- Three-Rate, Controlled, Automatic Charger
- Fused AC Input & DC Output Circuit Protection
- Single-Voltage Transformer for 120VAC Operation
- PAR46 21W HALOGEN
- Optional 5W PAR46 LED Sealed Beams (400lms per head)
- 20-Gauge Steel Housing
- Low-Voltage Battery Cutoff
- Maximum Input Rating
- 120VAC 60 Hz 1.0 Amps
- Refillable Nickel Cadmium Battery
- -22°–140°F Operating Range
- 6-Volt Operation
- Top End Battery Access
- Battery Viewpoint
- Full-Length Piano Hinge with Lock Hasp
- Integral Carrying Handles
- Two-Tone Powder-Coat Finish (Beige & Cocoa) Standard
- Slide-Out Control Chassis
- Load Cutoff Switch
- Voltmeter
- Amber (Power On), Red (Hi-Charge) and Green (Trickle Charge) Indicators
- Test Switch
- UL924 Listed
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.5"L: 18.5"H: 20.5"
- Light SourceMR/PAR/AR and Other Bulbs
- CCT/Color
- CRI
- Watt(Approx)
- Lumens(Approx)
- OpticsDirectSpot
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CULMade in USAChicago Approved
- Environment
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
