Big Beam Emergency Systems

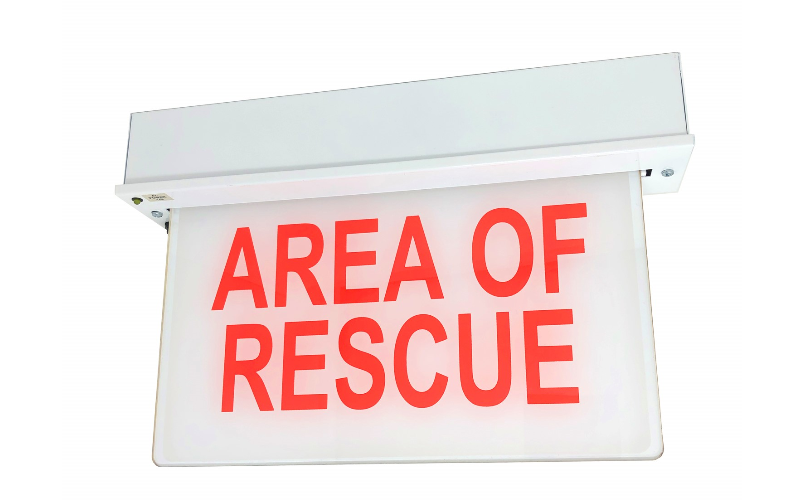

RCHXL. Chicago Approved LED Edge-Lit Custom Signage.
Configure
Add to project
RESOURCES
DESCRIPTION
The RCHXL-CUSTOM is a competitive Edge-Lit Sign and meets Chicago Code. Big Beam has the ability to make custom wording and select symbols with our Chicago Approved Edge-Lit panels. Available with Battery Backup, recessed & surface mounting (wall, ceiling, and end available), custom housing and trim styles. Made in USA!
- Chicago Approved LED Edge-Lit sign
- Area of Rescue, Area of Rescue Assistance with Handicap Symbol, Men, Women, In Use, XRay In Use, Not An Exit, SALIDAS, & many more..
- Dual Voltage 120/277 VAC
- 1.7W Standard LED Illuminates with Uniform Color and Brightness
- 20-Gauge Steel Housing
- Recessed or Surface Mount Housing
- Ceiling or Back Mount
- Constant Current, Controlled Automatic Charger Circuit
- Low-Voltage Battery Cutoff
- Clear Acrylic, Edge Lit Panel
- Silk Screen Letters
- Brushed Stainless Housing or Trim available
- Chicago Code Arrow Designations Available
- White Finish Standard, Black Finish Available
- 5 Year Shelf Life
- Sealed Nickel Cadmium Battery, 10 Year Warranty
- 3+ Hours Illumination in Emergency Mode*
- Test Switch
- UL Listed
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.8"4.01"3.8"1.5"L: 15.4"16"H: 10.1"10"7.6"10.4"
- Light SourceLED
- CCT/Color
- CRI
- Watt(Approx)1.7 W
- Lumens(Approx)
- OpticsDirectDirect View
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CULMade in USAChicago Approved
- Environment
- Mounting TypeCeiling SurfaceCeiling RecessedWall SurfaceWall Recessed
- Housing
- Housing Depth
