Bullard Bollards (Gordon Bullard)

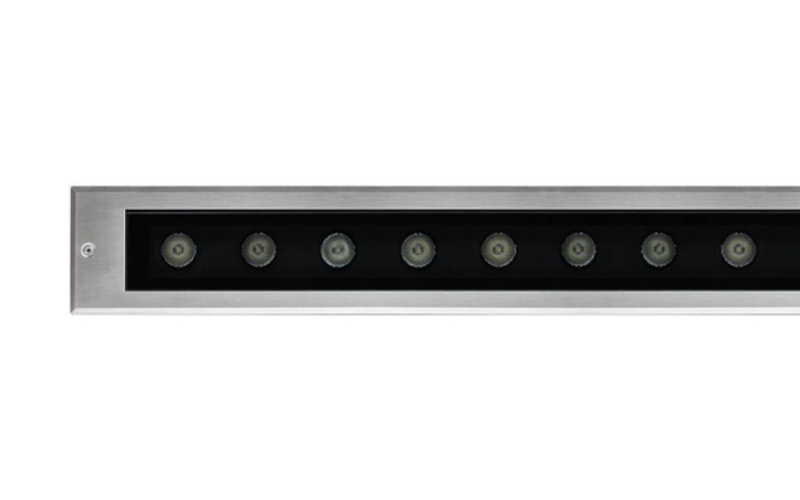

BB-00108. BUNNY MINITRACK C Ceiling Recessed.
Configure
Add to project


RESOURCES
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The Bunny MiniTrack Series of linear fixtures to be recessed in the ceiling with very low recess depth characterized by high level of visual comfort. Available in various lengths. Designed for lighting of exterior and interior application thanks to the wide availability of optics and powers. The body and diffuser closure caps are constructed of high oxidation resistant aluminum alloy which is subjected to nano-bonderite treatment and finished with texturized polyester powder paint, making the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. The external finishing frame and screws are in stainless steel. Silicone gaskets ensure maximum sealing in all operating and temperature conditions. The ultra transparent tempered sodium calcium glass diffuser ensures maximum light transmittance and is finished with a silkscreen border. The product, thanks to the steel bracket system, can be easily installed in any kind of false ceiling or suspended ceiling.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.95"L: 14.96"25.2"36.61"48.43"
- Light SourceLED
- CCT/Color3000K4000K
- CRI90
- Watt(Approx)9 W18 W27 W36 W
- Lumens(Approx)972 Lm1944 Lm2916 Lm3888 Lm
- OpticsDirectNarrowFloodWide FloodAdjustable Optics
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP68
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingNew Construction
- Housing Depth3.31 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBB-00108
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
