Bullard Bollards (Gordon Bullard)
BB-001108.BGXO-GH. Corrimano linear Integrated Hand Rails.
Configure
Add to project



RESOURCES
-
SPEC SHEET
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

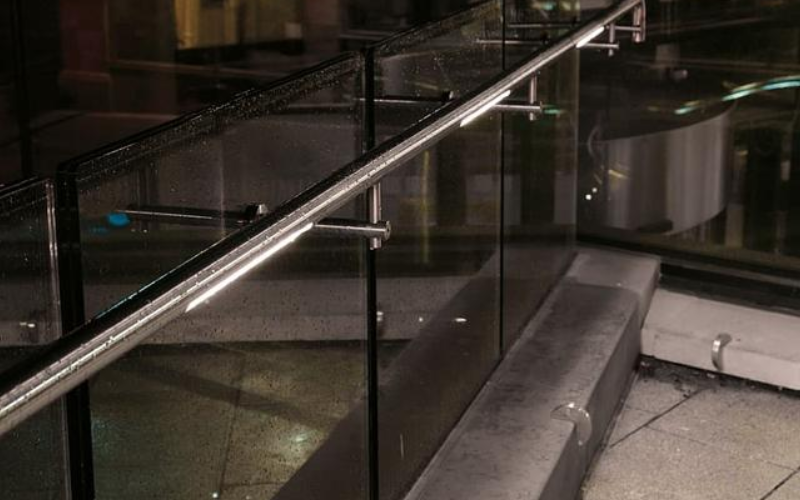

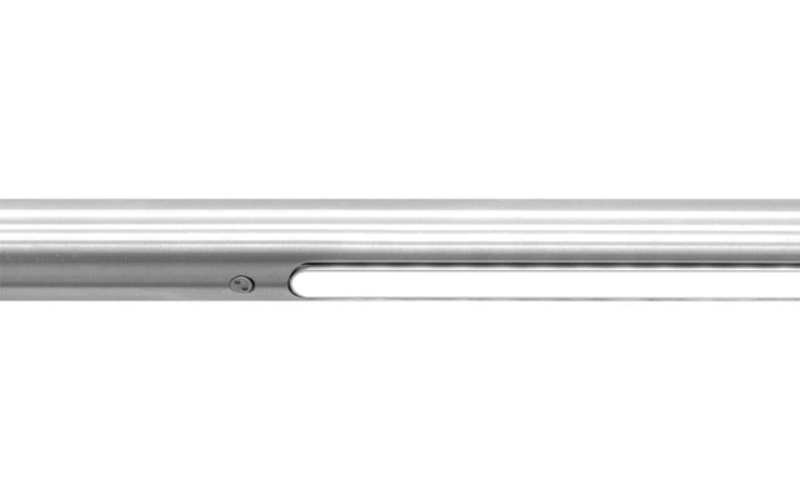

The Corrimano is a sleek, architectural-grade LED handrail luminaire engineered for durability, performance, and refined aesthetics. Designed for recessed applications, this IP67-rated fixture features an extruded EN AW-6060 T5 aluminum body with anodized finish, stainless steel A4 hardware, silicone gaskets, and an anti-UV technopolymer lens for long-lasting performance in demanding environments. Operating on 24V DC with high visual comfort optics (122° light distribution, CRI >90), it delivers consistent, energy-efficient illumination in multiple color temperatures (2700K–4000K). With fixed optics, remote driver compatibility, and a wide range of mounting accessories, the BB-001108.BGXO-GH is ideal for architectural handrails, pathways, and public spaces requiring minimal design, shock resistance, and reliable performance in temperatures from -22°F to 122°F.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.63”L: 16.54"27.56"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI90
- Watt(Approx)2.88 W4.35 W5.76 W
- Lumens(Approx)213 Lm207 Lm222 Lm426 Lm444 Lm414 Lm519 Lm571 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/NetworkCasambi
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP67
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
