Bullard Bollards (Gordon Bullard)

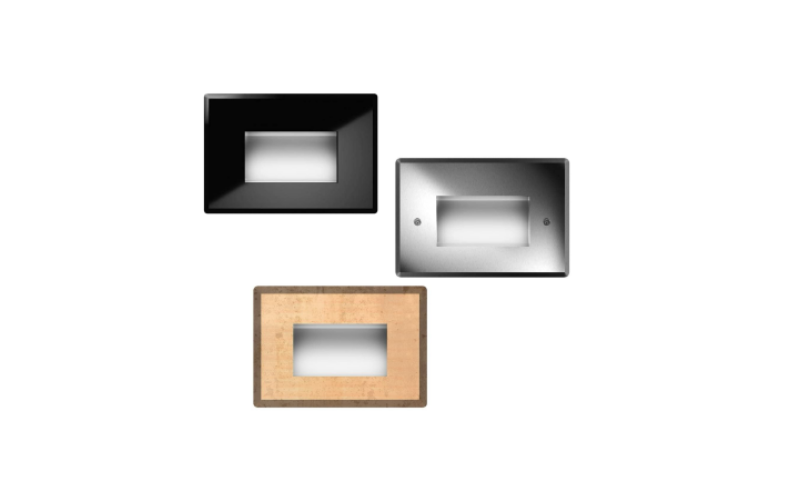

BB-001600.BAAT-GH. Bunny Pass.
 Configure
 Add to project
RESOURCES
DESCRIPTION

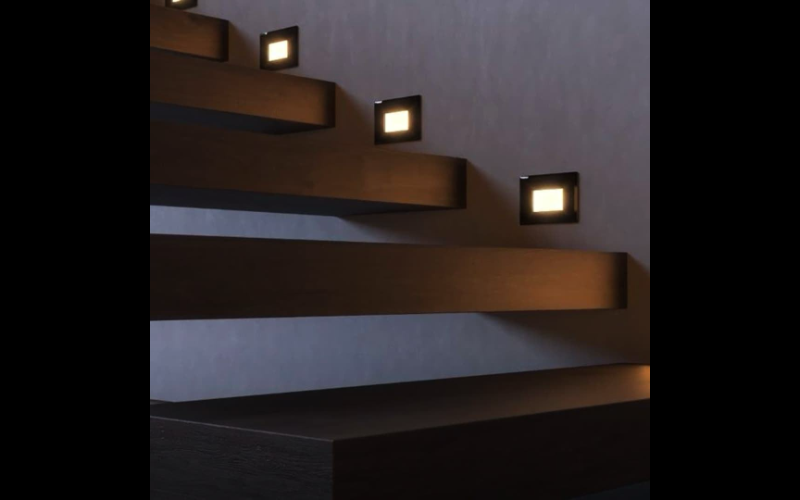

BUNNY PASS it is a series of recessed wall luminaires with reduced recessed depth. They are designed for lighting of paths, stairs and passages with diffused light. The construction of the body, in aluminum alloy with high resistance to oxidation, treated with nano-bonderite and protected with polyester powder-coating , make the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. The silicone gaskets ensure maximum sealing in all operating and temperature conditions. The diffuser in tempered sodium calcium glass finished with silk-screen printing and beveled edge gives a touch of class to the fixture. The product is installed with a standard polystyrene rough-in housing and is suitable for both concrete and conventional walls. The drywall version is easy to install with harmonic steel springs.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    L: 4.53"
    H: 3.15"
  • Light Source
    LED
  • CCT/Color
    3000K4000KBlue
  • CRI
    90
  • Watt(Approx)
    2 W
  • Lumens(Approx)
    102 Lm272 Lm288 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Non-Dim0-10VDALI
  • Controls/Network
  • Power/Voltage
    IntegralRemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP65
  • Mounting Type
    Wall Recessed
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
