Bullard Bollards (Gordon Bullard)

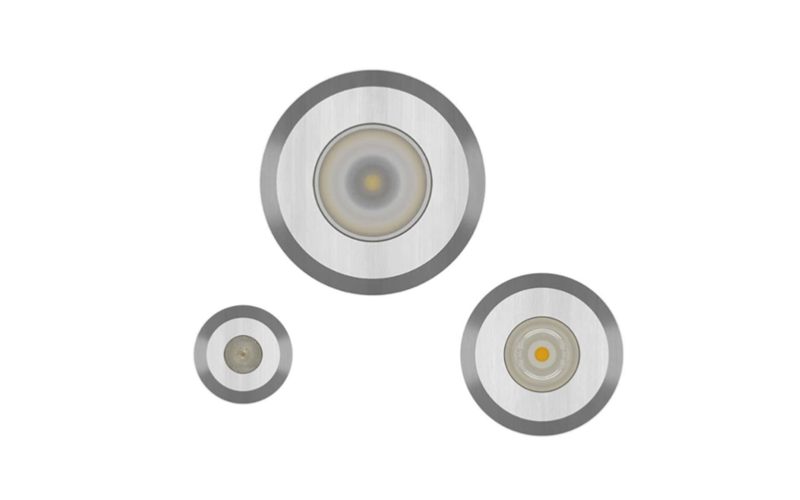

BB-1063.00BAST-GH. LUNARA RD Ceiling Recessed.
 Configure
 Add to project
RESOURCES
DESCRIPTION
The LUNARA RD recessed ceiling luminaire is a compact, high-performance LED fixture designed for precise architectural lighting in indoor and covered outdoor applications. Engineered with a durable stainless steel and extruded aluminum construction, it offers excellent resistance to oxidation and long-term reliability. The fixture features high-efficiency LED technology with multiple beam angle options for narrow, medium, or wide light distribution, allowing precise accent or general illumination. A clear tempered glass diffuser and IP66 protection ensure durability in demanding environments, while the remote driver configuration and optional dimming controls provide flexible installation and lighting control. With its minimalist round design and refined finishes, the BB-1063 delivers a sophisticated lighting solution for modern architectural spaces.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.26"1.77"2.17"
    L: 1.26"1.77"2.17"
  • Light Source
    LED
  • CCT/Color
    3000K4000KBlue
  • CRI
    90
  • Watt(Approx)
    2.1 W1 W3.2 W6 W
  • Lumens(Approx)
    40 Lm196 Lm218 Lm277 Lm845 Lm
  • Optics
    DirectNarrowMediumFloodWide FloodAdjustable Optics
  • Adjustable
  • Dimming
    Dim to 3-10%Non-Dim0-10VDALI
  • Controls/Network
    Casambi
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP66
  • Mounting Type
    Ceiling RecessedDrywall
  • Housing
    New Construction
  • Housing Depth
    1.26 ''1.42 ''1.81 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
