Bullard Bollards (Gordon Bullard)

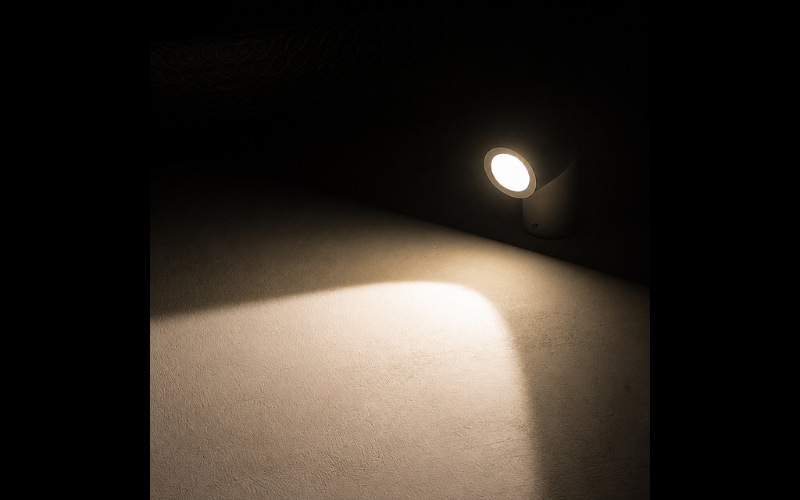

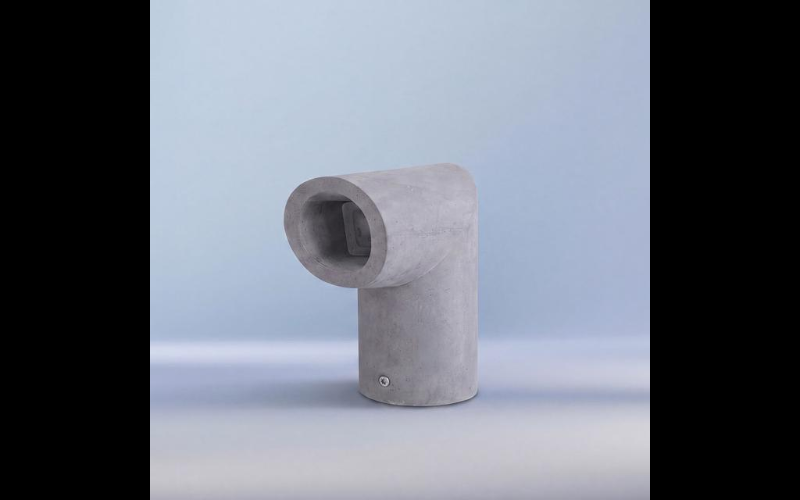

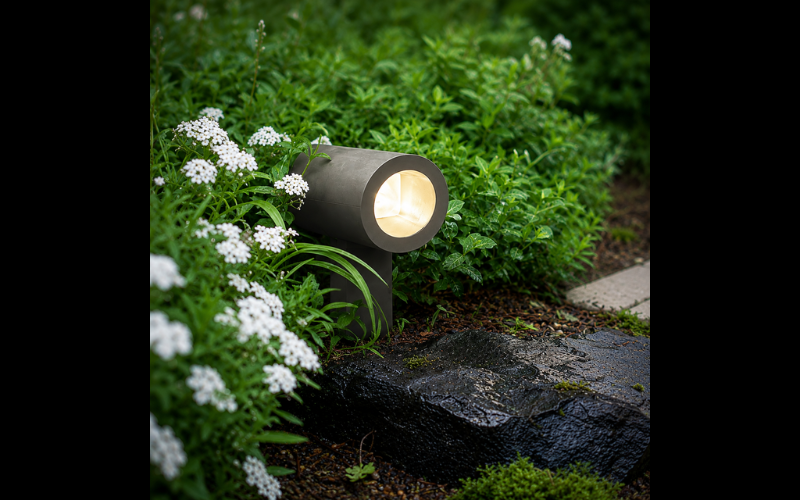

BB-1129B-9010. Sonar Small Landscape Pathmarkers.
 Configure
 Add to project
RESOURCES
DESCRIPTION
Sonar Small is a compact, modern pathmarker designed for precision illumination and understated style. Crafted from robust BETALY® material, it features an IP65 rating for reliable dust and water protection, ensuring durability in harsh outdoor environments. Operating on 110–277V with a remote driver, it offers high visual comfort, a wide range of finishes, and shock resistance, performing flawlessly in temperatures from -22°F to 122°F. Backed by a 5-year LED warranty, the Sonar Small delivers functional lighting with a minimal footprint, ideal for pathways, landscapes, and architectural accents.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2.95"
    L: 5.28"
    H: 5.71"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K
  • CRI
    90
  • Watt(Approx)
    2 W
  • Lumens(Approx)
    270 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Non-Dim0-10VDALI
  • Controls/Network
    Lutron®Casambi
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP65
  • Mounting Type
    Bollard
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
