Bullard Bollards (Gordon Bullard)

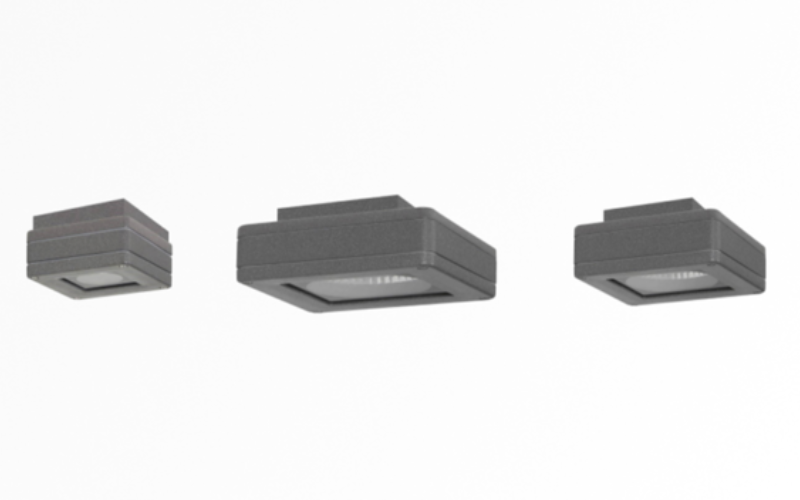

BB-1208.00LVMT-GH. UNITA Flat Ceiling Surface.
 Configure
 Add to project
RESOURCES
DESCRIPTION
The UNITA Flat ceiling surface luminaire is a compact, architectural LED fixture designed for reliable outdoor and indoor illumination. Constructed from high-resistance extruded and die-cast aluminum with a durable textured polyester powder-coat finish, it offers excellent protection against oxidation, weathering, and UV exposure. The fixture integrates high-efficiency LED technology with multiple beam angle options to deliver symmetrical medium-flood light distribution, ensuring comfortable and effective illumination for residential, commercial, and architectural spaces. With an IP65 rating, silicone gaskets, integrated driver, and optional dimming and finish configurations, the BB-1208 provides a versatile, low-maintenance lighting solution that combines modern design with long-lasting performance.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.54"4.92"7.87"
    L: 3.54"4.92"7.87"
    H: 2.56"
  • Light Source
    LED
  • CCT/Color
    3000K4000K
  • CRI
    90
  • Watt(Approx)
    8 W20 W18.3 W
  • Lumens(Approx)
    740 Lm790 Lm1933 Lm2065 Lm2638 Lm2836 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Non-Dim0-10VDALI
  • Controls/Network
    Casambi
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP65
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
