Bullard Bollards (Gordon Bullard)

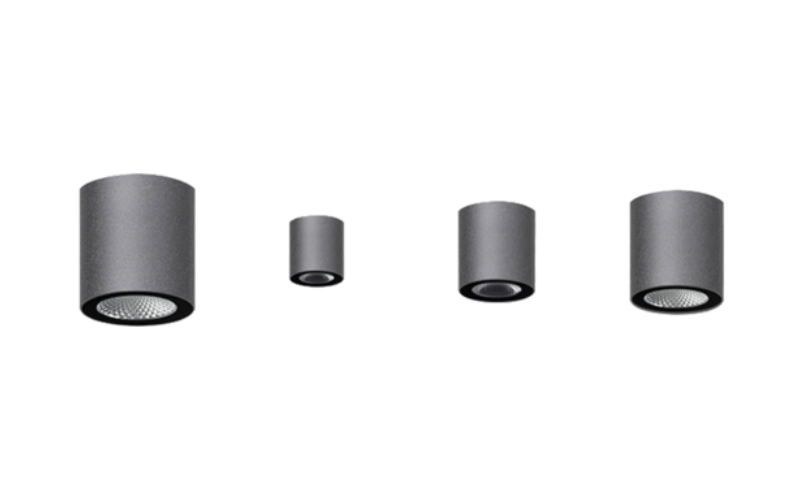

BB-1430.00RNFOBOX-GH. ROUND-O BOX CEILING Ceiling Surface.
 Configure
 Add to project
RESOURCES
DESCRIPTION
ROUND-O BOX CEILING is series of ceiling surface mounted luminaires with very small dimensions. It is available in various sizes and it is especially designed for ambient with high level of humidity or for outdoor applications. It is highly recommended for accent lighting of small facades, porches, bathrooms, showers and other architectural elements in general thanks to the wide availability of optics and powers. The construction of the body in aluminum alloy high resistance to corrosion subjected nano-bonderite, make the product resistant and durable over time. The finish and protection is made of primary treatment with nanoceramic conversion. Protection with textured polyester powder coating resistant to weathering and UV rays.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.98"1.37"1.77"2.95"
    L: 0.98"1.37"1.77"2.95"
    H: 1.33"1.45"1.85"3.14"
  • Light Source
    LED
  • CCT/Color
    3000K4000K
  • CRI
    80
  • Watt(Approx)
    1.5 W2.1 W3.2 W6 W8 W
  • Lumens(Approx)
    146 Lm162 Lm196 Lm218 Lm277 Lm307 Lm740 Lm845 Lm790 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%Non-DimTRIAC/Forward/Leading0-10V
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP65
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
