Bullard Bollards (Gordon Bullard)
BB-200.00DFBN300EN-GH. Bunny Dot Flat.
Configure
Add to project


RESOURCES
-
SPEC SHEET
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

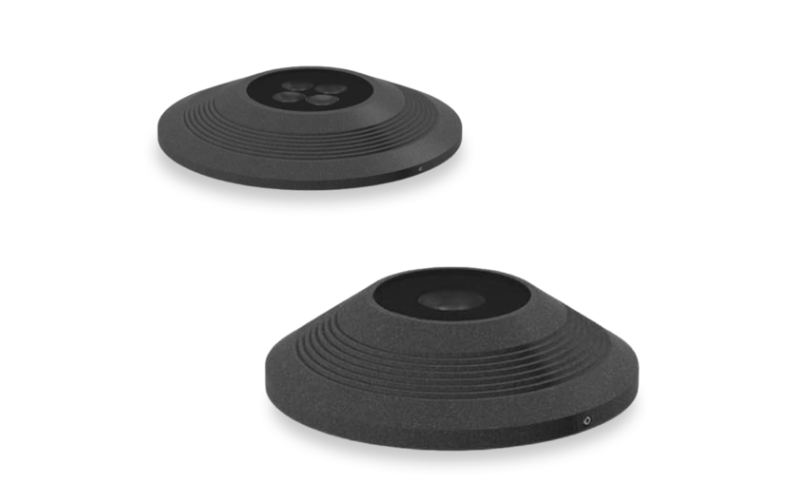

BUNNY DOT FLAT is a series of floor-mounted luminaires with reduced projection. It is available in various sizes and designed for grazing lighting to illuminate passages and paths. Designed for those applications where it is not possible to recess the product in the ground. The construction in of high oxidation resistant aluminum alloy which is subjected to nano-bonderite treatment and finished with texturized polyester powder paint, making the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. Silicone gaskets ensure maximum sealing in all operating and temperature conditions. The ultra transparent tempered sodium calcium glass diffuser ensures maximum light transmittance. The external screws are in stainless steel.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.72"7.87"L: 4.72"7.87"H: 1.32"
- Light SourceLED
- CCT/Color3000K4000K
- CRI80
- Watt(Approx)2.1 W8.4 W
- Lumens(Approx)196 Lm218 Lm784 Lm872 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP68
- Mounting TypeIn-Grade
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBB-200.00DFBN300EN-GH
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
