Bullard Bollards (Gordon Bullard)

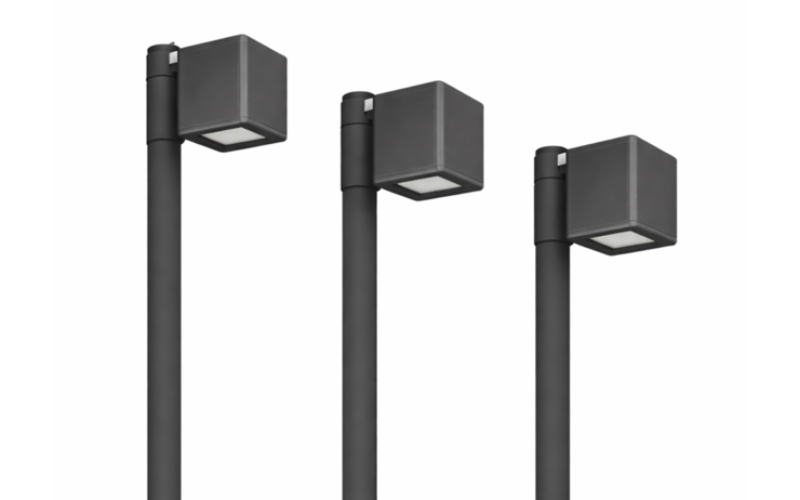

BB-CD-GN-PL. The Cuby-D Garden / Park Luminaires.
 Configure
 Add to project
RESOURCES
DESCRIPTION
Series of spot lights to be mounted on floor, wall, spike, tree with belt or on a pole system. Available in various sizes, rotatable and inclinable on the vertical axis, they are designed for lighting facades, small, medium and tall trees, bushes, statues, columns and other architectural elements in general thanks to a wide range of optics and wattage. CUBY-D comes with a series of accessories that ensure different type of mounting and beam control. The body and diffuser closure ring are constructed of high oxidation resistant aluminum alloy which is subjected to nano-bonderite treatment and finished with texturized polyester powder paint, making the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. Silicone gaskets ensure maximum sealing in all operating and temperature conditions. The ultra transparent tempered sodium calcium glass diffuser ensures maximum light transmittance and is finished with a silkscreen border. All the external screws are in stainless steel.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.54"7.87"31.75"
    L: 3.54"7.87"31.75"
    H: 5.62"13.07"49.53"
  • Light Source
    LED
  • CCT/Color
    3000K4000K
  • CRI
    80
  • Watt(Approx)
    6.5 W14.7 W17.3 W27.4 W23 W26.1 W30.1 W41.2 W
  • Lumens(Approx)
    964 Lm1043 Lm2181 Lm2345 Lm3740 Lm4022 Lm3501 Lm4239 Lm3698 Lm4689 Lm5393 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP65
  • Mounting Type
    Pole/Mast Arm
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
