Bullard Bollards (Gordon Bullard)
BB-CHRT-BL. Charta (STANDARD grade).
Configure
Add to project


RESOURCES
DESCRIPTION

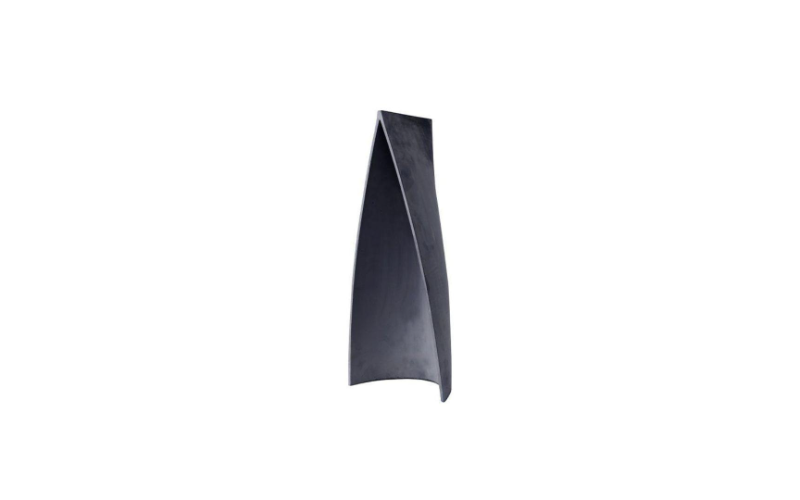

The CHARTA by Bullard Bollards is a sculptural outdoor bollard luminaire made from premium BETALY®, showcasing a sleek, modern silhouette that merges art and function.
With a distinctive asymmetric form and integrated 4.5W LED light source, CHARTA offers a soft, ambient glow ideal for architectural pathways and landscape accents.
Available in warm color temperatures of 2200K, 2700K, or 3000K with lumen outputs ranging from 605 to 670 lm, it supports multiple dimming protocols including Casambi, Dali, Lutron, and 0-10V.
Measuring 25.6″ tall with a base of 10.24″ x 9.06″, it features an IP65 rating for outdoor durability, and comes in a range of natural matte finishes like white, green, corten, grey, black, and sand.
Combining high design and reliable performance, CHARTA is an elegant choice for refined outdoor environments.
With a distinctive asymmetric form and integrated 4.5W LED light source, CHARTA offers a soft, ambient glow ideal for architectural pathways and landscape accents.
Available in warm color temperatures of 2200K, 2700K, or 3000K with lumen outputs ranging from 605 to 670 lm, it supports multiple dimming protocols including Casambi, Dali, Lutron, and 0-10V.
Measuring 25.6″ tall with a base of 10.24″ x 9.06″, it features an IP65 rating for outdoor durability, and comes in a range of natural matte finishes like white, green, corten, grey, black, and sand.
Combining high design and reliable performance, CHARTA is an elegant choice for refined outdoor environments.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9.06"L: 10.24"H: 25.60"
- Light SourceLED
- CCT/Color2400K or less2700K3000K
- CRI80
- Watt(Approx)4.5 W
- Lumens(Approx)605 Lm635 Lm670 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/NetworkLutron®Casambi
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP65
- Mounting TypeBollard
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
