Bullard Bollards (Gordon Bullard)

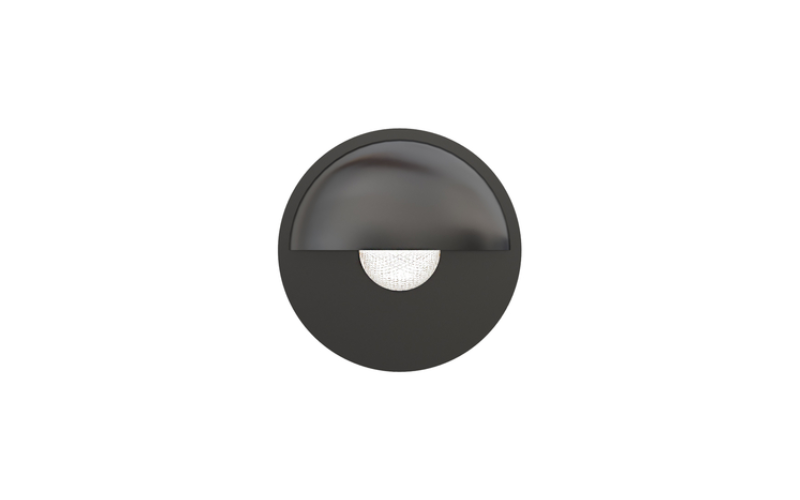

BB-LMX-KPG-RWL. Lumextra Stair / Pathway.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The LUMEXTRA Recessed Wall Luminaire is a durable LED fixture for stairways and pathways. Made from die-cast powder-coated aluminum with a tempered glass lens, it operates on 110–277V and offers IP67 and IK10 protection. With a load capacity over 2000 kg, LUMEXTRA ensures reliable, long-lasting performance in Sanded Dark Gray, Sanded Black, or Sanded White finishes.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 1.65"2.28"2.75"H: 1.65"2.28"2.75"
- Light SourceLED
- CCT/Color3000KField Select CCT
- CRI80
- Watt(Approx)1 W2 W5 W
- Lumens(Approx)28 Lm60 Lm237 Lm
- OpticsDirectMediumFlood
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP67
- Mounting TypeWall Recessed
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBB-LMX-KPG-RWL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
