Bullard Bollards (Gordon Bullard)

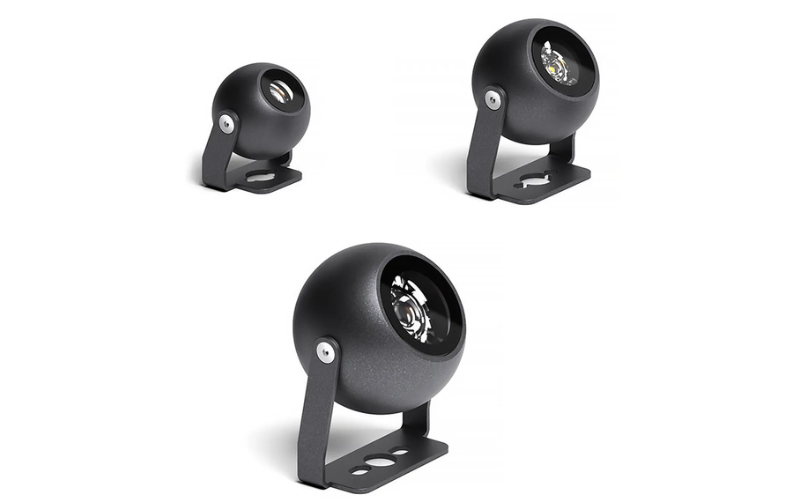

BB-MCECH-GH-SP. Echo Spot Garden Spotlight Luminaires.
 Configure
 Add to project
RESOURCES
DESCRIPTION
Series of spot lights ECHO SPOT to be mounted on floor, wall, spike, tree with belt system or on a pole system. Available in various sizes, inclinable on the vertical axis, they are designed for lighting small facades, small trees, bushes, stautes, columns and other architectural elements in general thanks to a wide range of optics and wattages. The product requires a remote costant current driver o low voltage trasfromer based on the version selected.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.89"
    L: 1.5"
    H: 1.97"
  • Light Source
    LED
  • CCT/Color
    3000K4000K
  • CRI
    90
  • Watt(Approx)
    1.5 W
  • Lumens(Approx)
    146 Lm162 Lm
  • Optics
    DirectMediumFlood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Non-Dim0-10VDALI
  • Controls/Network
    Casambi
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP65
  • Mounting Type
    Ground Spike/StakeWall SurfaceFloor
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
