Bullard Bollards (Gordon Bullard)

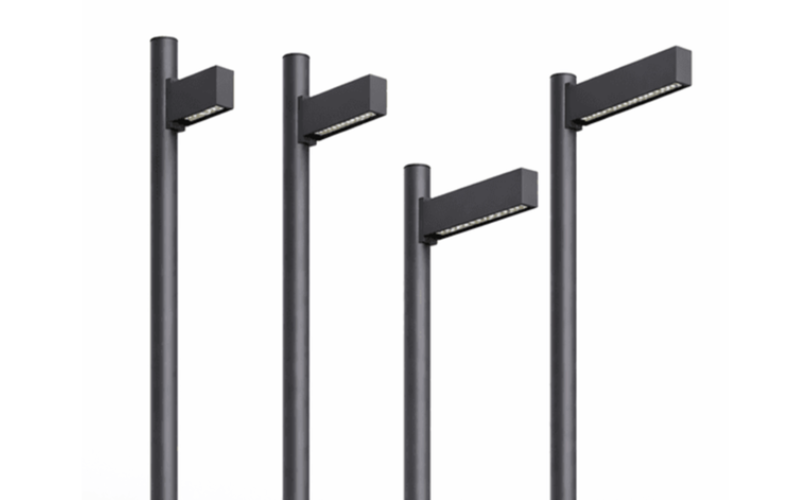

BB-RD-GN-PL. The Ridge Garden / Park.
 Configure
 Add to project
RESOURCES
DESCRIPTION
THE RIDGE is suitable for floor, wall, ground spike, or pole mounting installations. The range is available in four sizes and is designed for the illumination of façades, small and medium trees, shrubs, statues, columns, and architectural elements in general. A wide selection of optics allows precise and flexible lighting control. The body and diffuser retaining ring are manufactured from high oxidation–resistant aluminum alloy, treated with nano-bonderite and finished with textured polyester powder coating to ensure resistance to atmospheric agents and UV radiation. Sealing is ensured by silicone gaskets, providing reliable protection under all operating and temperature conditions. The diffuser is made of ultra-transparent tempered sodium-calcium glass to maximize luminous efficiency and features a silk-screened border. All external fastening screws are in stainless steel.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.69"
    L: 4.21"6.29"13.07"16.73"
    H: 3.54"
  • Light Source
    LED
  • CCT/Color
    3000K4000K
  • CRI
    90
  • Watt(Approx)
    6.3 W7.4 W10.5 W12.4 W21 W32 W31.5 W
  • Lumens(Approx)
    588 Lm654 Lm982 Lm1090 Lm1964 Lm2946 Lm2180 Lm3270 Lm
  • Optics
    DirectNarrowFloodWide FloodAdjustable Optics
  • Adjustable
  • Dimming
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP66
  • Mounting Type
    Pole/Mast Arm
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
