Bullard Bollards (Gordon Bullard)
BB-RZ-KPG-SPT. Rayz Garden Spotlight Luminaires.
 Configure
 Add to project
Bullard Bollards. BB-RZ-KPG-SPT. Rayz Garden Spotlight Luminaires.
Bullard Bollards. BB-RZ-KPG-SPT. Rayz Garden Spotlight Luminaires.
Bullard Bollards. BB-RZ-KPG-SPT. Rayz Garden Spotlight Luminaires.
Bullard Bollards. BB-RZ-KPG-SPT. Rayz Garden Spotlight Luminaires.
RESOURCES
DESCRIPTION

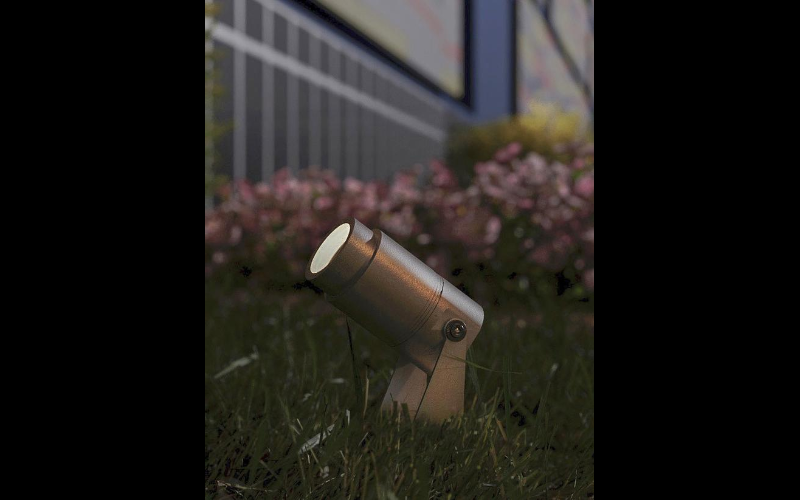

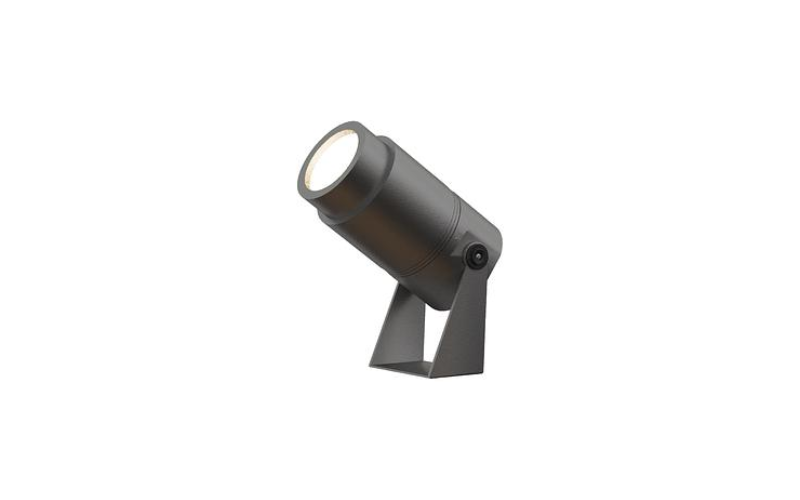

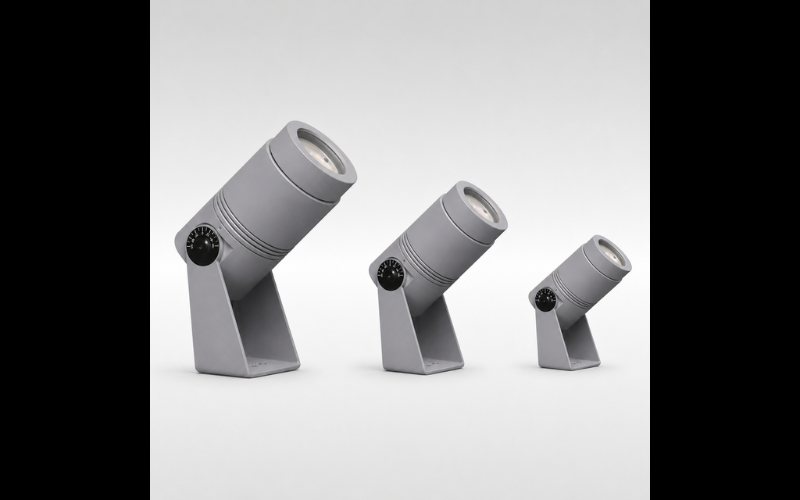

The RAYZ Garden Spotlight by Bullard Outdoor is a sleek and durable LED luminaire designed for outdoor and landscape applications.

Built from 12# die-cast aluminum with a tempered glass lens (T=3mm), it operates on 110–277V and delivers reliable, high-quality illumination with a CRI of 80.

With IP66 and IK06 protection and a nickel-coated copper cable gland, RAYZ offers exceptional performance and longevity.

Available in Sanded Bronze, Dark Gray, Black, and White finishes, it combines modern design with rugged outdoor durability.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2.35"3"2.95"
    L: 3.55"4.13"5.1"
    H: 2.9"3.9"4.8"
  • Light Source
    LED
  • CCT/Color
    3000K
  • CRI
    80
  • Watt(Approx)
    3 W8 W14 W
  • Lumens(Approx)
    120 Lm968 Lm1689 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VDALI
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP66
  • Mounting Type
    Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
