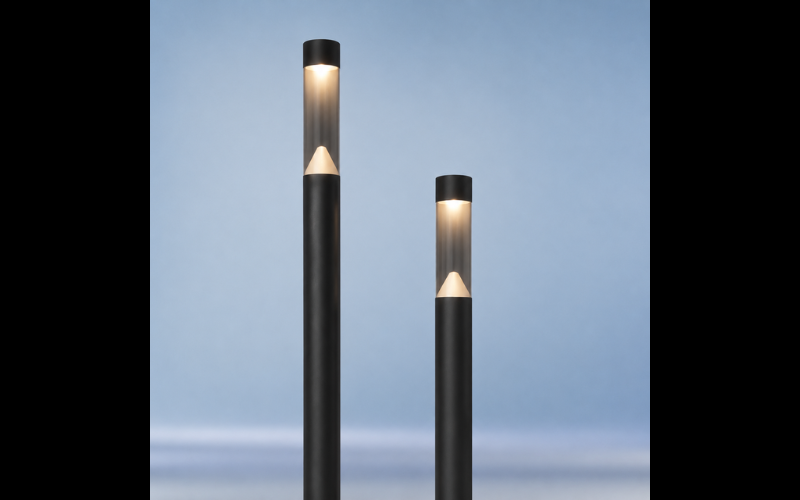

BB-SH-GN-PL. Marina Garden / Park Luminaires.
Configure
Add to project


RESOURCES
-
SPEC SHEET
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Series of bollards and pole with minimal design available in various heights. Designed to illuminate squares, avenues, paths, parks, walkways and gardens without glaring. With its strong steel base and the construction of the head in high oxidation resistant aluminum alloy which is subjected to nano-bonderite treatment and finished with texturized polyester powder paint, making the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. The solid construction of the product makes it resistant to winds of over 160km/h and resistant to vandalism. Silicone gaskets ensure maximum sealing in all operating and temperature conditions. The ribbed and opal polycarbonate diffuser silconated directly to the head makes it highly resistant to impact and allows for an homogeneous light distribution. The external screws are in stainless steel and on request also available in a vandal-proof version for those installations on public areas. The inspection door at the base of the pole allows wiring to be carried out quickly and safely. The product is installed using pressure tie rods to be screwed directly into the ground or through tie rods embedded in the concrete.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.59"L: 7.59"H: 94.48”157.48”
- Light SourceLED
- CCT/Color3000K4000K
- CRI80
- Watt(Approx)25.2 W45.2 W
- Lumens(Approx)3100 Lm3146 Lm6860 Lm7376 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP65
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
