Beacon (Current)
RBD. RATIO Bollard SQUARE.
Configure
Add to project
RESOURCES
DESCRIPTION

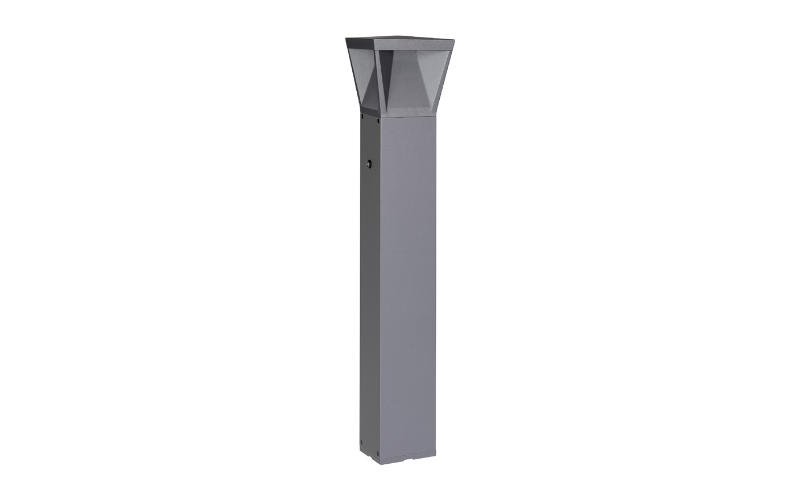

- Rectilinear Bollard luminaire to match the Ratio Area, Flood and Wall product lines
- Each side of the bollard has it’s own LED board so you can choose to illuminate any section, giving you light in 90 degree increments.
- Includes a variety of distributions for lighting applications such as parks, schools, retail, and corporate campuses
- Available in 24", 30", 36" and 42" heights
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.4"L: 8.4"H: 24"30"36"42"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70
- Watt(Approx)9.4 W18.7 W27.2 W33.9 W
- Lumens(Approx)687-723 Lm1425-1500 Lm2096-2206 Lm2639-2778 Lm
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- EnvironmentIP65
- Mounting TypeBollard
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRBD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
