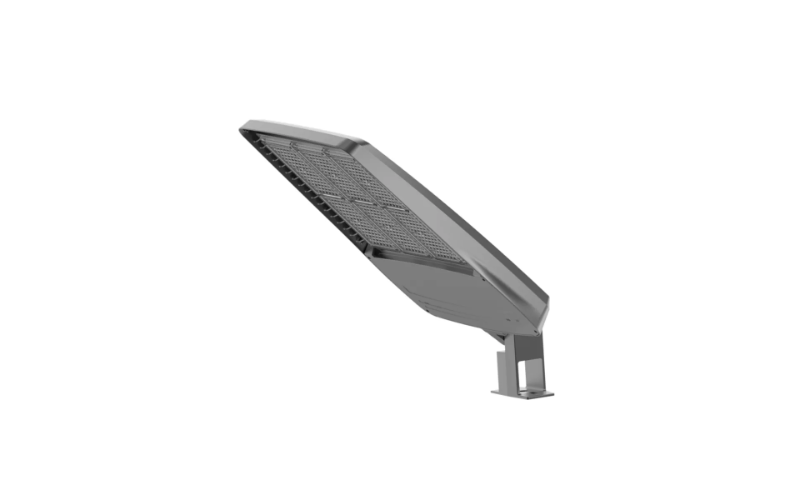

VP-F. VIPER Floodlight Size 4 LUMINAIRE.
Configure
Add to project
RESOURCES
DESCRIPTION
- Featuring two different optical technologies, Micro Strike and Strike Optics, which provide the best distribution patterns for retrofit or new construction
- Vibration rated for high vibration applications including bridges and overpasses
- Control options including photo control, occupancy sensing, NX Lighting Controls, wiSCAPE and 7-Pin with networked controls
- Mounting options include: Adjustable Arm, Knuckle, Trunnion, Wall
- Distribution options include: 2x2, 3x3, 4x4, 5x5, 6x6, 6x4, 4x6
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 19.62"L: 27.98"H: 3.48"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KYellow/Amber
- CRI80 70 90
- Watt(Approx)347.7 W322.1 W389.3 W415.2 W449.9 W362.6 W403.6 W445.1 W487.1 W543.9 Wcustom
- Lumens(Approx)40000 Lm48000 Lm44000 Lm52000 Lm55000 Lm60000 Lmcustom
- OpticsDirectFloodWide Flood
- AdjustableAdjustable
- Dimming
- Controls/NetworkBluetoothNX WirelessIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULDLC*BAA
- EnvironmentIP65
- Mounting TypePole/Mast ArmTrunnionKnuckleSurface Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVP-F4
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
