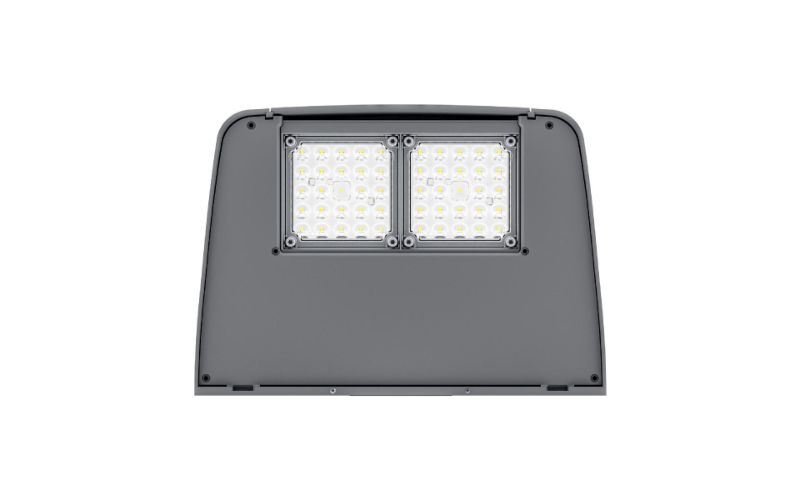

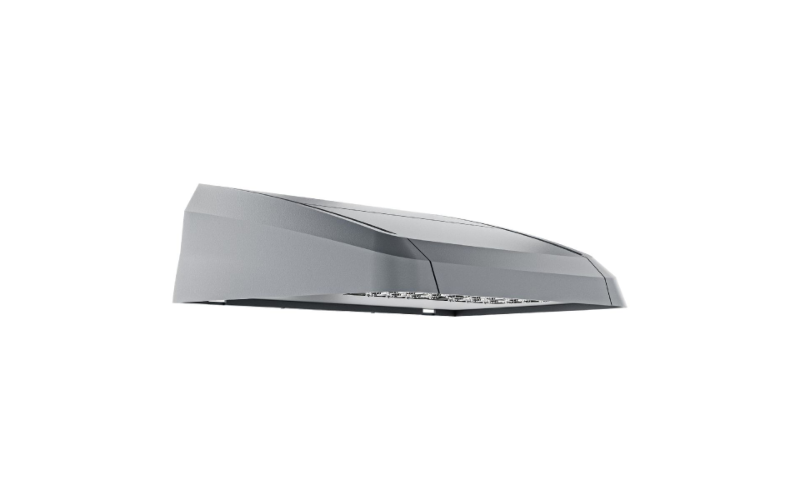

Beacon (Current)
VPW3. VIPER Wall.
Configure
Add to project
RESOURCES
DESCRIPTION
- Large low profile LED wall luminaire with a variety of IES distributions for lightingapplications such as retail, commercial and industrial building mount
- Featuring Strike and Micro Strike Optics which maximizes target zone illumination with minimal losses at the house-side, reducing light trespassissue
- Control options including occupancy, NX Integrated Controls and photo control
- Quick-mount adapter allows easy installation/maintenance
- 347V and 480V versions for industrial applications and Canada
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12.5"L: 17.7"H: 5.25"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KYellow/Amber
- CRI80 70
- Watt(Approx)46.2 W68.3 W63.1 W91 W77.6 W106.3 W134.8 W108.2 W120.9 W158.3 W
- Lumens(Approx)6838 Lm9744 Lm7400 Lm9944 Lm13471 Lm14309 Lm12810 Lm13904 Lm17511 Lm20046 Lm
- OpticsDirectType IIType IIIType IV
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkBluetoothNX WirelessIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULDark SkyRoHSBAA
- EnvironmentIP65
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVPW3
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
