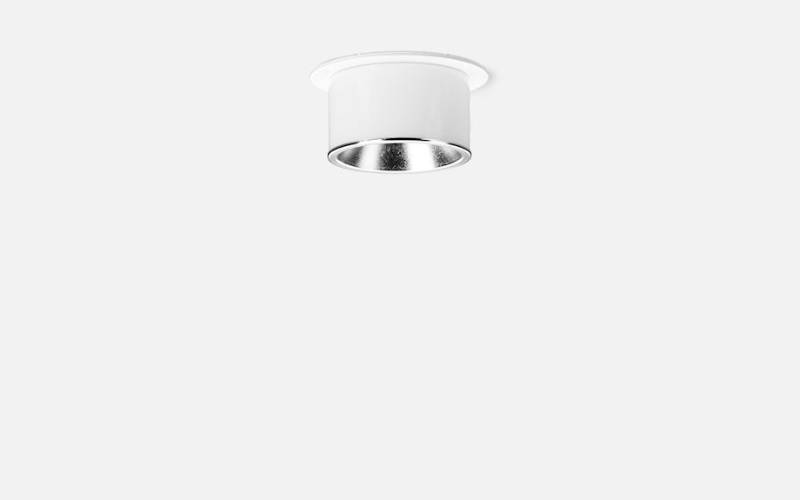

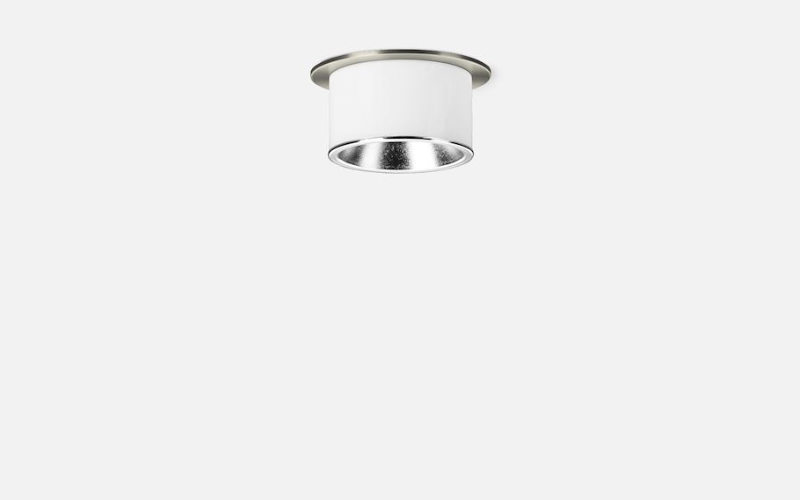

12 066. Semi-recessed downlight.
Configure
Add to project
RESOURCES
DESCRIPTION
Compact LED semi-recessed luminaires with direct / indirect light distributions. A focusing/dispersing lens collimates the powerful LED light in the center of the reflector for the direct portion of the downlight. At the same time, a fraction of the dispersed light is used to illuminate the luminaire glass and generate vertical illuminance. The dual light distribution results in maximum viewing comfort.
Hand-blown, three-ply opal glass
Additional focusing / dispersion lens made of partially frosted crystal glass
Reflector made of pure anodized aluminum
Aluminum housing
Select the desired trim ring material finish by using appropriate code number as suffix
LED color temperatures: 2700 K, 3000 K, 3500 K, 4000 K
NRTL listed to North American Standards, interior use only
Hand-blown, three-ply opal glass
Additional focusing / dispersion lens made of partially frosted crystal glass
Reflector made of pure anodized aluminum
Aluminum housing
Select the desired trim ring material finish by using appropriate code number as suffix
- White Code number .1
- Stainless steel Code number .2
- Polished aluminum Code number .3
LED color temperatures: 2700 K, 3000 K, 3500 K, 4000 K
NRTL listed to North American Standards, interior use only
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 4"H: 2 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)7.5 W
- Lumens(Approx)525 Lm
- OpticsDirectFlood
- Adjustable
- DimmingDim to <1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance460000 h
- Certificates
- EnvironmentDamp
- Mounting TypeSemi-RecessedDrywall
- HousingNew Construction
- Housing Depth2 ''
