50 201. Wall washer Asymmetric.
Configure
Add to project
RESOURCES
DESCRIPTION

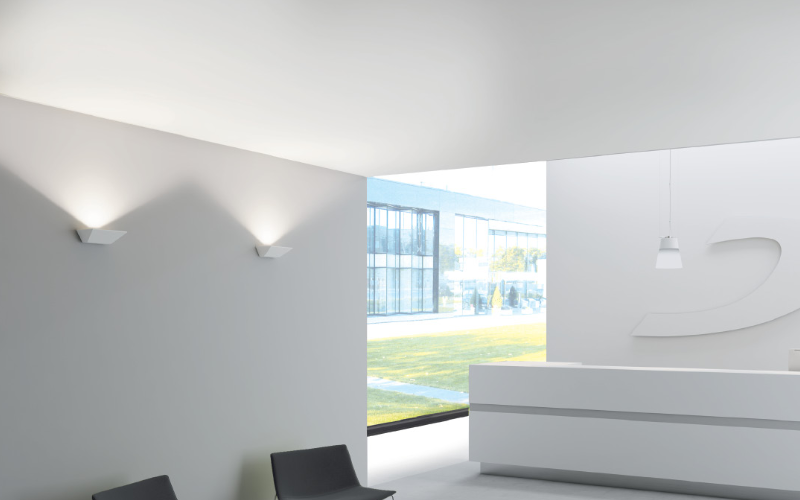

A versatile family of luminaires, available in multiple sizes, light distributions, and finishes. Asymmetric versions are intended to indirectly illuminate ceilings or archways, while also subtly illuminating the wall surface. These luminaires are an excellent lighting tool for efficient, indirect illumination of interior spaces.
Clear safety glass
Reflector made of pure anodized aluminum
Die cast aluminum housing
Select the desired material finish by using appropriate code number as suffix
LED color temperatures: 2700 K, 3000 K, 3500 K, 4000 K
NRTL listed to North American Standards, interior use only
Clear safety glass
Reflector made of pure anodized aluminum
Die cast aluminum housing
Select the desired material finish by using appropriate code number as suffix
- White Code number .1
- Palladium Code number .4
- Velvet black Code number .5
LED color temperatures: 2700 K, 3000 K, 3500 K, 4000 K
NRTL listed to North American Standards, interior use only
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7 3/8"L: 12 5/8"H: 4 1/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)33.6 W
- Lumens(Approx)2927 Lm
- OpticsIndirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- Certificates
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time50201
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
