Bega US
77 148. In-grade luminaire Adjustable.
Configure
Add to project
RESOURCES
DESCRIPTION

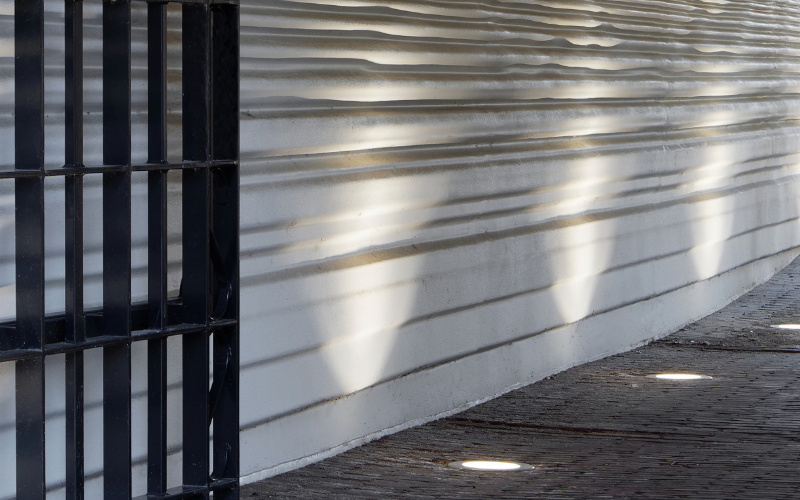

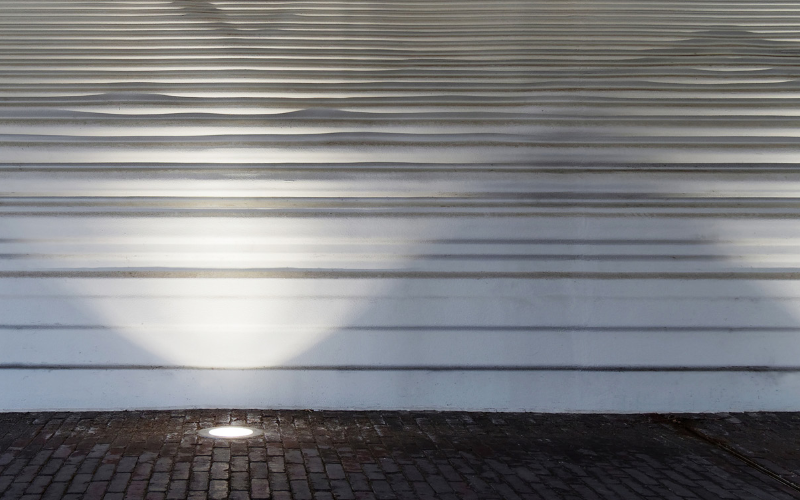

In-grade adjustable floodlight luminaires. These luminaires are designed to bear pressure loads up to 4400 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.
Stainless steel housing and faceplate · Clear safety glass · Floodlight reflectors made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
Brushed stainless steel. Custom colors are not available.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 68 10m
Stainless steel housing and faceplate · Clear safety glass · Floodlight reflectors made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
Brushed stainless steel. Custom colors are not available.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 68 10m
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 13"L: 13"
- Light SourceLED
- CCT/Color3000K4000K
- CRI85
- Watt(Approx)29 W
- Lumens(Approx)1404 Lm
- OpticsDirectNarrowAdjustable Optics
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesCSA
- EnvironmentIP68
- Mounting TypeIn-GradeConcrete Drive Over
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
