Bega US
99 878. Adjustable luminaire with pole Asymmetric - Single.
Configure
Add to project
RESOURCES
DESCRIPTION

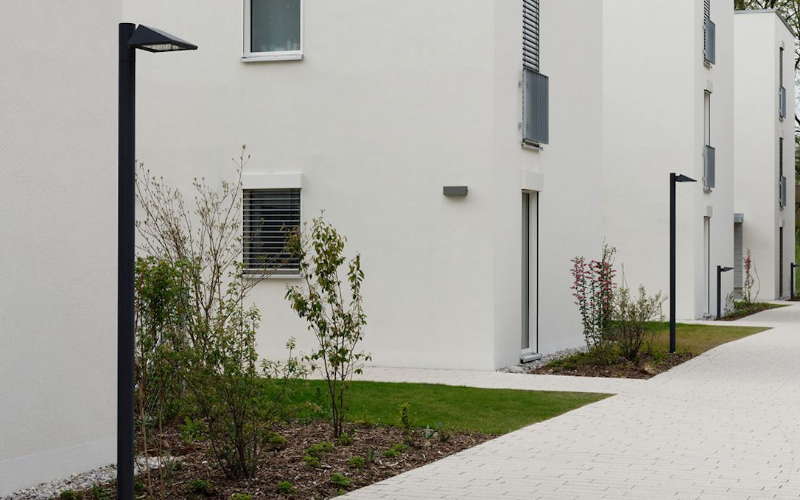

A series of single and twin LED pole-top luminaires with asymmetric forward throw or asymmetrical wide spread light distribution. The asymmetric forward throw luminaires provide light in front of the luminaire to uniformly wash surfaces. The wide spread light distribution is ideally suited for illuminating roads and pathways.
Die-cast and extruded aluminum · Clear safety glass · Reflector made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 65
Die-cast and extruded aluminum · Clear safety glass · Reflector made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 65
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 10 1/4"L: 12 1/2"H: 98 1/2"
- Light SourceLED
- CCT/Color3000K4000K
- CRI85
- Watt(Approx)15.8 W
- Lumens(Approx)2172 Lm
- OpticsDirectType II
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesCSA
- EnvironmentIP65
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time99878
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
