SNS. Novo Short Surface Mount.
Configure
Add to project
DESCRIPTION

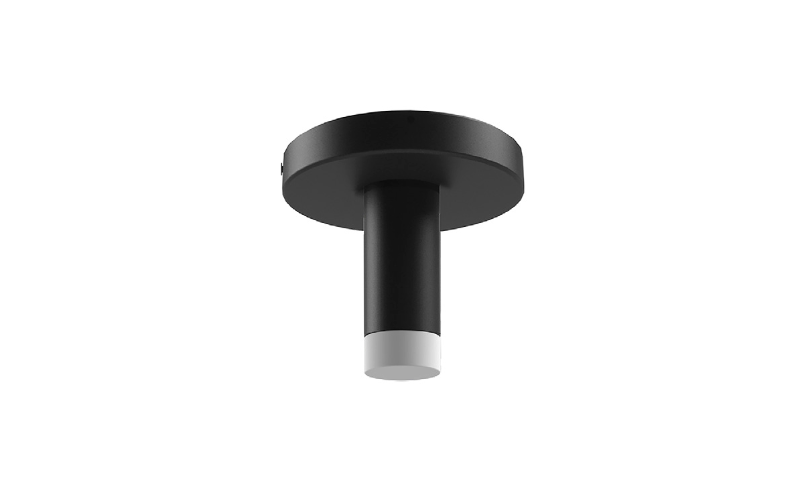

Novo Surface Mount consists of the Novo Short pendant flush mounted with either a 2.5” canopy or a 5” canopy.
Available with screw-in reflector or optical acrylic light guide diffuser
Damp location rated
Driver is located on top of canopy housing or remote mounted
Available with screw-in reflector or optical acrylic light guide diffuser
Damp location rated
Driver is located on top of canopy housing or remote mounted
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.3”4.75”L: 2.3”4.75”H: 3.75"4.25"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)5 W
- Lumens(Approx)365 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNSS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
