B-K Lighting

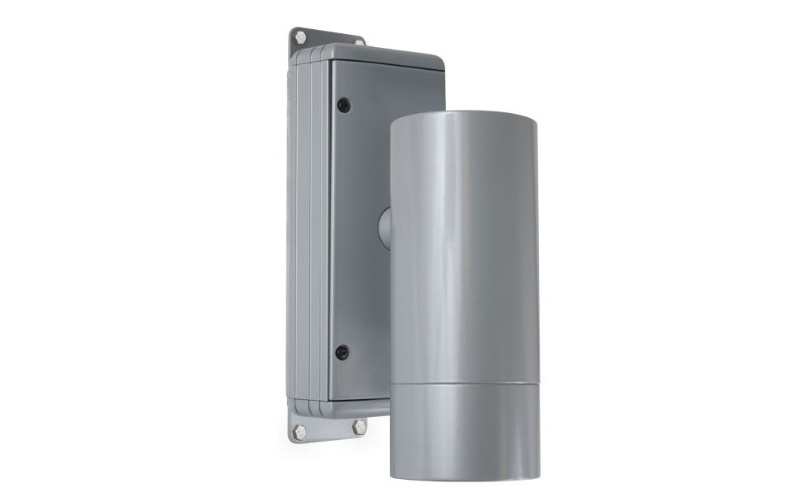

CK. CATSKILL™ on PM2 12-27W LED.
Configure
Add to project
RESOURCES
DESCRIPTION
- Furnished in Copper-Free Aluminum (Type 6061-T6).
- Body is fully machined from solid billet. Unibody design provides enclosed, water-proof wireway and integral heat sink for maximum component life. High temperature, silicone 'O' Ring provides water-tight seal.
- Cap is fully machined. Accommodates [2] lens or louver media. Choose from 45° cutoff ('A' or 'D'), 1" deep bezel with 90° cutoff ('B' or 'E') or flush lens ('C') cap styles. 'A' and 'B' caps include weep-hole for water and debris drainage. 'D' and 'E' caps exclude weep-hole and are for interior use only.
- Shock resistant, tempered, glass lens is factory adhered to fixture cap and provides hermetically sealed optical compartment.
- Integrated BKSSL® solid state system with 'x' technology is scalable for field upgrade. Modular design with electrical quick disconnects permit field maintenance.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 3"H: 10 3/8"8"7"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI80
- Watt(Approx)12 W20 W27 W
- Lumens(Approx)1300 Lm2000 Lm3100 Lm3250 Lm3360 Lm
- OpticsDirectNarrowFloodWide Flood
- Adjustable
- DimmingDim to 3-10%
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USA
- EnvironmentIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
