BCTQR. Tranquility Regressed lens 2x2 RECESSED.
Configure
Add to project
RESOURCES
DESCRIPTION

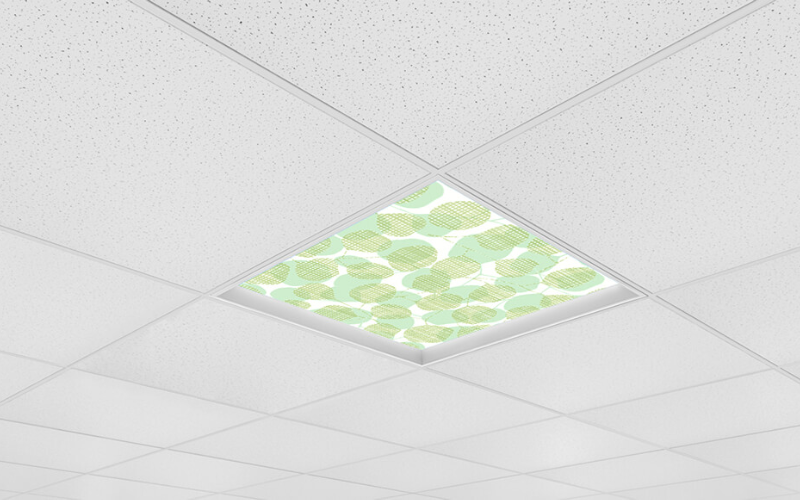

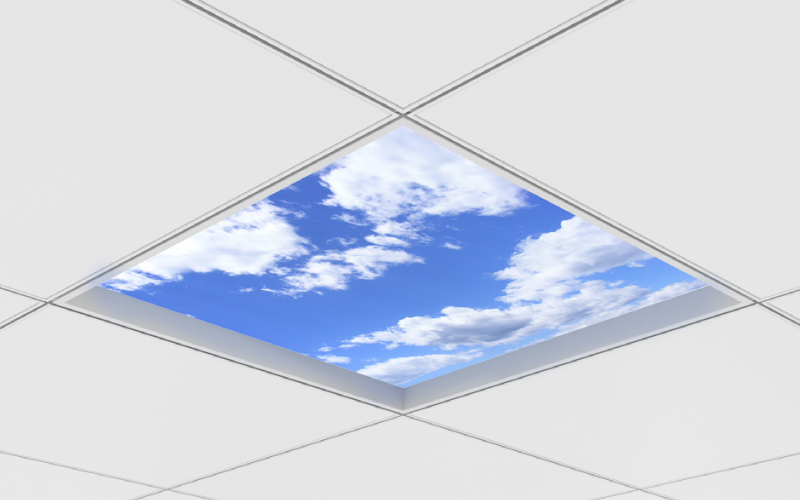

Features an elegantly regressed lens that suggests a skylight appearance. Choose from two Regressed Lens options to provide a low profile, elegant architectural effect. When coupled with a beautiful designer pattern, it appears to float in the ceiling.
*Lumens based on standard luminaire without graphics. The addition of Tranquility graphics will reduce output.
- Regressed lens to enhance skylight effect
- Easy-to-remove lift’n’shift lens – no visible latches
- 2’×2’: 2100 lumens*, fits 15/16” and 1.5” grids
- 2’×4’: 5400 lumens*, fits 15/16” and 1.5” grids
*Lumens based on standard luminaire without graphics. The addition of Tranquility graphics will reduce output.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80
- Watt(Approx)
- Lumens(Approx)2100 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkLutron®Ethernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULNSF
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth5 9/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBCTQR22
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
