Best Lights

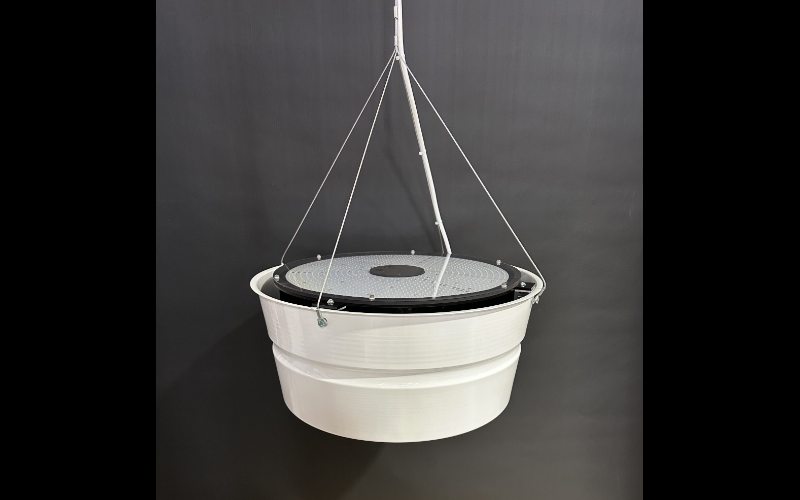

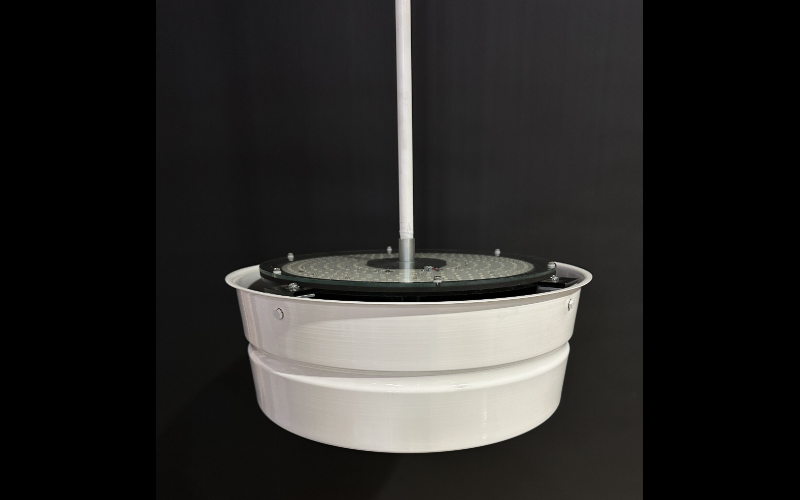

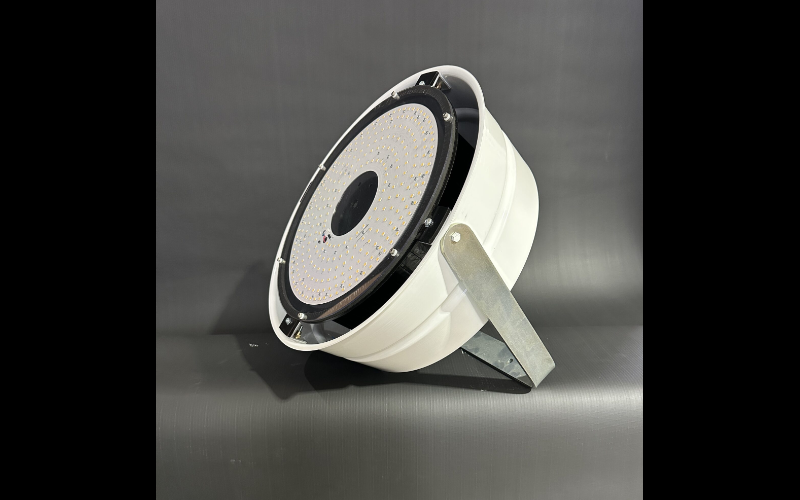

DISC LED 2.0 Ribbed.
Configure
Add to project
RESOURCES
DESCRIPTION
Description:
The DISC LED 2.0 is perfect for any high limen indirect or direct lighting project. It is the brightest and longest lasting LED light with a lumen depreciation rate of 1% per year over 10 years. (Maintains 90% light output over 10 years.)
Features
Certificate and Report
The DISC LED 2.0 is perfect for any high limen indirect or direct lighting project. It is the brightest and longest lasting LED light with a lumen depreciation rate of 1% per year over 10 years. (Maintains 90% light output over 10 years.)
- 472 Watt and 641 Watt
- Up to 163 Lumens Per Watt Delivered
- LED L70 Calculated 100,000 Hour Life
- Working Temperature: -30 to 50C
- Dimensions: 20 Inches x 9 Inches
- Weight: 26lbs
- Rated for: Damp Locations
- Durable Aluminum Housing
- Indirect Pendant/Cable (Indirect & Direct)/Pole/Unistrut
- Simple and Easy Installation
- Silent Operation (No Humming)
- Optional - Wireless Bluetooth Network Lighting Controls. Occupancy Motion Sensors, Dimming, High-end Trim and Scheduling
- Increased Light Levels with 50% – 70% ENERGY SAVINGS
- No Lamps = NO MAINTENANCE
- Qualifies for Utility Rebates
- Brilliant Energy Saving Technology Made in America Since 1994
Features
- LEDs - Seoul Semi
- Driver - INVERTRONICS
- 120 - 480 Volt
- Safety Laminated Clear Glass or Polycarbonate Lens
- Warranty - 10 Years LEDs / 7 Years on Drivers
Certificate and Report
- UL / CUL / DLC
- LM-80 / LM-79 / IES
MORE DESCRIPTION
SPECIFICATIONS
- Dimensions
- Light SourceLED
- CCT/Color5000K
- CRI84
- Watt(Approx)472 W548 W618 W641 W
- Lumens(Approx)73993 Lm64741 Lm74817 Lm76741 Lm86817 Lm97484 Lm83708 Lm93994 Lm97008 Lm85484 Lm88611 Lm100611 Lm
- OpticsDirectIndirectGeneral Diffused
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULMade in USADLC*RoHS
- EnvironmentIP65
- Mounting TypePole/Mast ArmPendantSurfaceTrunnion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDISC-LED-2.0
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
