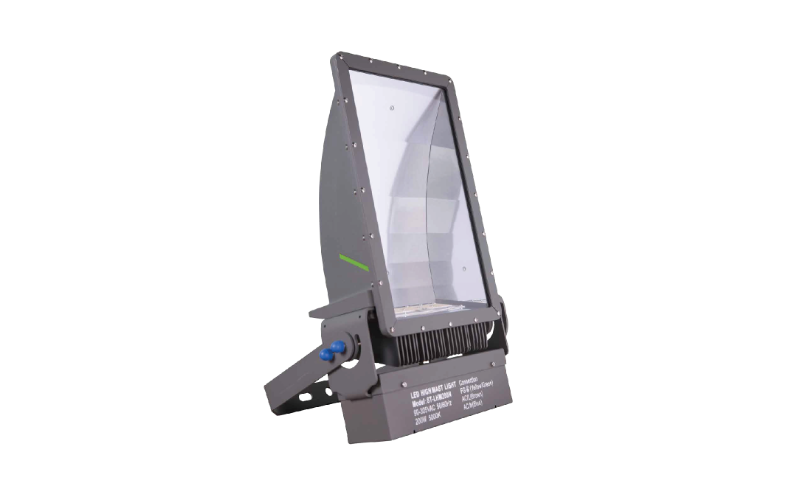

ST-LHMN. G1-S1 HIGH MAST LIGHTING 100W, 150W, 200W.
Configure
Add to project
RESOURCES
DESCRIPTION
Description:
Features
Certificate and Report
- 100/150/200 Watts
- Life Time 50,000
- Working Temperature: -40 to 131 F
- IP 65 Rated
- Weight: 23lbs
- Beam Angle: Indirect Asymmetric
- Die-cast Aluminum
- Simple and Easy Installation
- Silent Operation (No Humming)
- Smart Network Lighting Controls available upon request
- No Lamps = NO MAINTENANCE
- Qualifies for Utility Rebates
Features
- LEDs - NICHIA
- Driver - INVERTRONICS / MEANWELL
- 100 - 528 Volt
- Surge Protection - 10kV Standard, 20kV Optional
- Warranty - 10 Years LEDs / 7 Years on Drivers
Certificate and Report
- ETL / DLC
- LM-80 / LM-79 / IES
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 10.24"L: 25.28"H: 6"
- Light SourceLED
- CCT/Color3000K4000K5000K5700K6500K
- CRI70 80 90
- Watt(Approx)100 W150 W200 W
- Lumens(Approx)13265 Lm20556 Lm25174 Lm
- OpticsDirectAsymmetric/Wash
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLDLC*BAA
- EnvironmentIP65
- Mounting TypeYokeBrackets
- Housing
- Housing Depth
