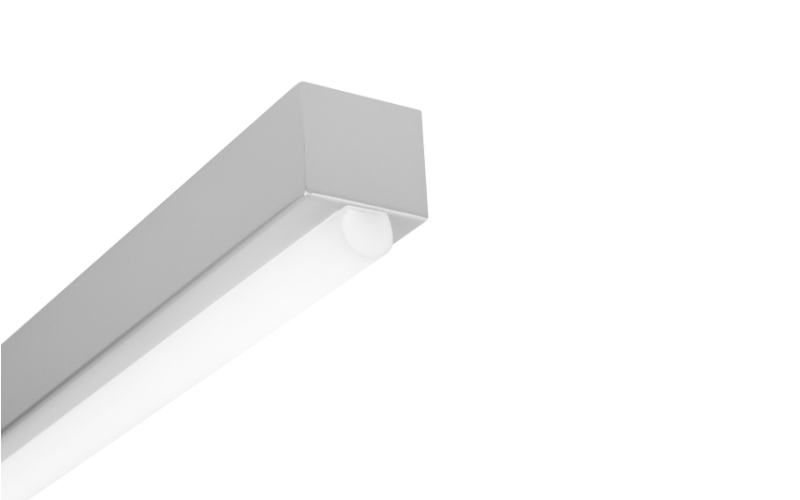

BC8824. SECRET MENU 1-5/8'' wide sheet steel LED luminaire with tubular lens.
Configure
Add to project
RESOURCES
DESCRIPTION
The BC8824 fixture has a familiar appearance, mimicking our iconic, clean bodied linear strips. The heavy gauge, 1-3/4” wide by 1-5/8” tall sheet formed housing is topped with a diffuse acrylic tubular lens, that recalls the classic form of a linear fluorescent lamp. Multiple driver and LED color/output options broaden application versatility.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/4"L: 23”34”45”H: 2 1/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)5.3 W/Ft7.5 W/Ftcustom
- Lumens(Approx)550 Lm/Ft750 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron EcoSystemeldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USA
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBC8824
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
