Bartco Lighting

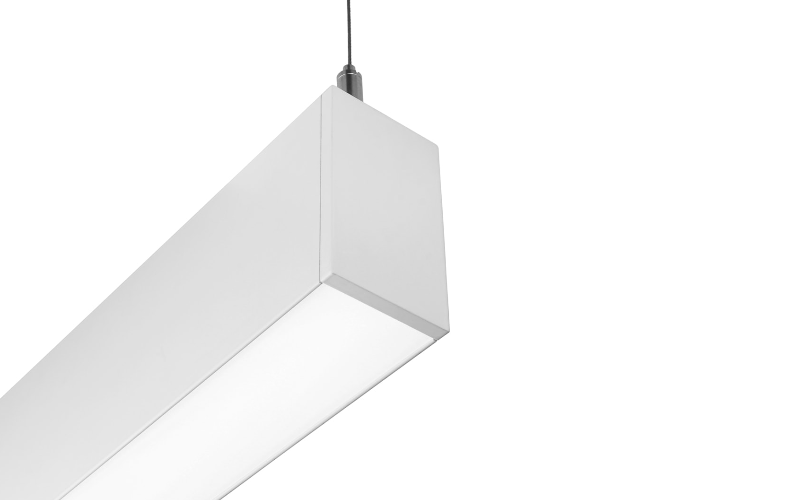

HCB12. SWELL 2” wide direct/indirect LED luminaire, Illuminated by BIOS.
 Configure
 Add to project
Bartco Lighting. HCB12. SWELL 2” wide direct/indirect LED luminaire, Illuminated by BIOS.
Bartco Lighting. HCB12. SWELL 2” wide direct/indirect LED luminaire, Illuminated by BIOS.
RESOURCES
DESCRIPTION
The Swell Series HCB12 is a linear LED luminaire tailored for health-centric lighting installations. The 2” wide by 3-1/2” high extruded aluminum housing is offered for wall or cable suspended mounting and variety of optic options.

The HBC12 fixture is embedded with BIOS SkyBlue® circadian solutions to produce the healthy “blue sky” light signal needed to stimulate human circadian biology. This specific light wavelength communicates directly with human biology through a non-visual photoreceptor to regulate circadian rhythms, providing healthier sleep patterns and ultimately, better health.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2”
    L: 22 5/8”33 5/8”44 5/8”55 5/8”66 5/8”77 5/8”88 5/8”
    H: 4 1/2”3 1/2”
  • Light Source
    LED
  • CCT/Color
    3000K3000K Dim to Warm3500K3500K Dim to Warm4000KTunable White
  • CRI
    80
  • Watt(Approx)
    8 W8.1 W11 W11.1 Wcustom
  • Lumens(Approx)
    710 Lm880 Lm1175 Lm950 Lmcustom
  • Optics
    Direct/IndirectGeneral DiffusedBatwing
  • Adjustable
  • Dimming
    Dim to 1%Non-Dim0-10V
  • Controls/Network
  • Power/Voltage
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    Made in USA
  • Environment
    Damp
  • Mounting Type
    PendantWall Arm/Cantilever
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
