BASO
CORNER LINEAR RUN SURFACE.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

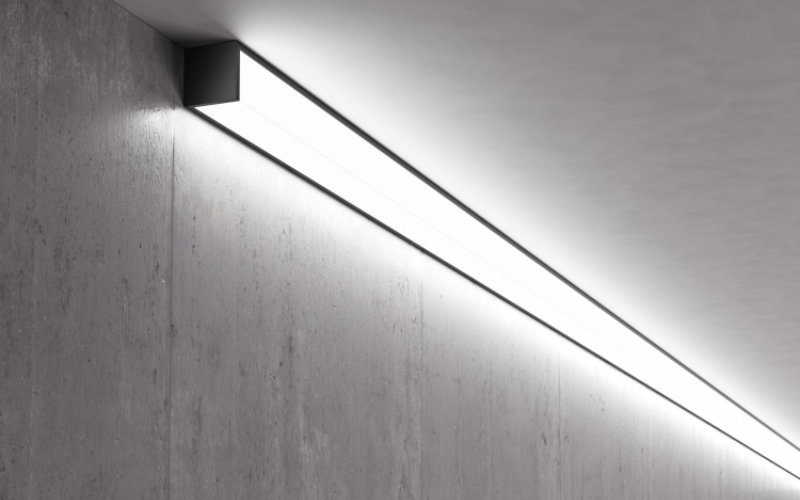

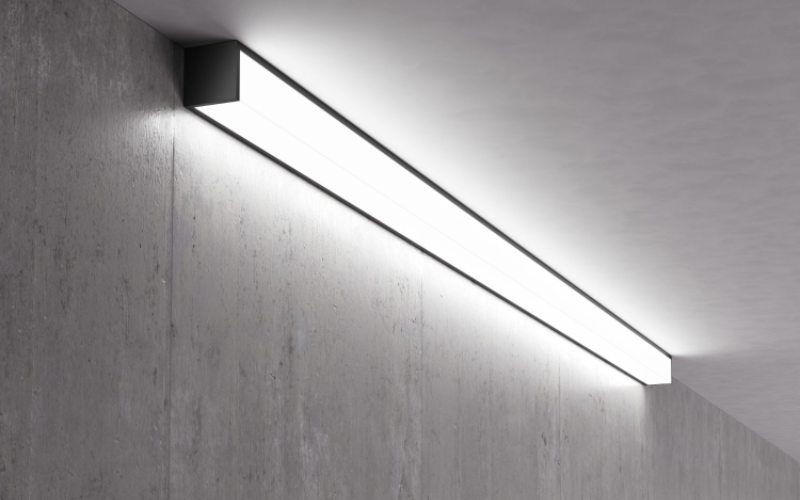

The beautifully designed space-saving CORNER, with a 3" wide, square, linear extruded aluminum profile will fit discreetly into vertical and horizontal corners. The matte fine-texture powder coated white, black or gray surface can compliment any style.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 24"48"72"96"Run length (inch)H: 3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)4.2 W/Ft6.4 W/Ft9 W/Ftcustom
- Lumens(Approx)500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VLutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CULRoHSBAA
- EnvironmentDamp
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCORNER-SUR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
