BASO

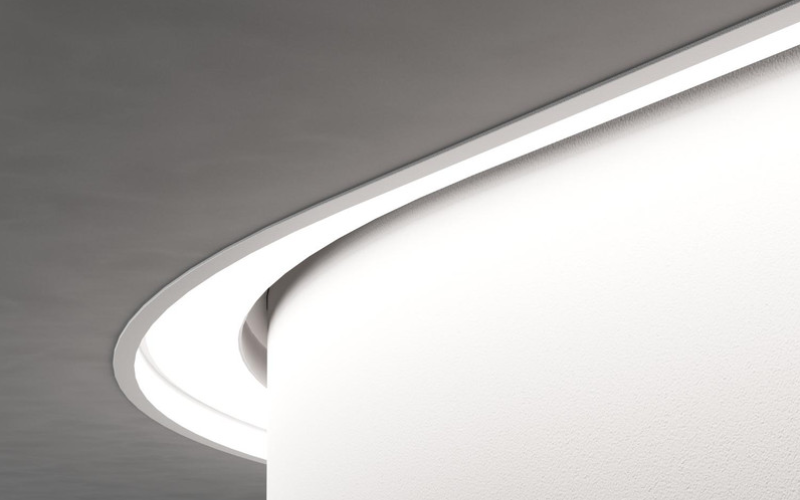

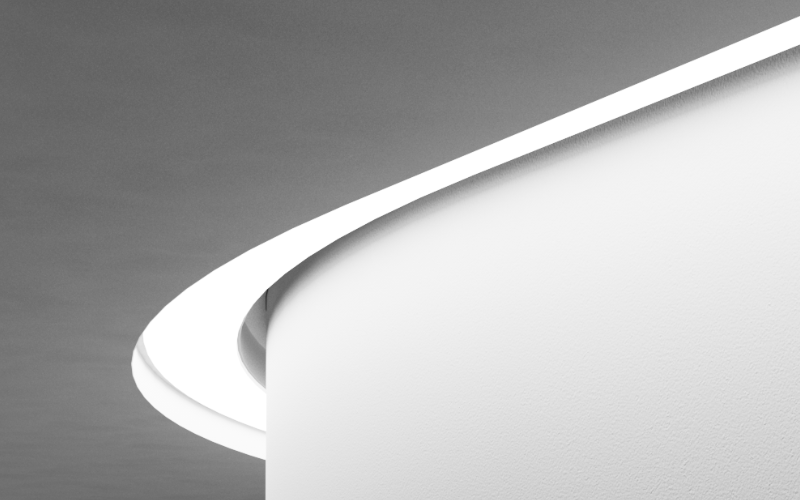

CURVE 4.0 PERIMETER.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Perimeter is available in 1.5, 2.5 and 4.0 trimless and with trim, it offers a highly efficient, ultra-quiet, wall wash effect. Perimeter utilizes a flush, light guiding, acrylic asymmetric lens. Available in different perimeter depths (Flush, Regressed 1", and Regressed 2") and available in multiple patterns.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 5/8"5 13/32"L: 24"30"36"48"60"120"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)4.1 W/Ft6.3 W/Ft8.9 W/Ftcustom
- Lumens(Approx)500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10VLutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernetIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CULRoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid CeilingSlot T-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4 15/16 ''5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCURVE40-PM
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
